Same model may have multiple batches, images only for reference.

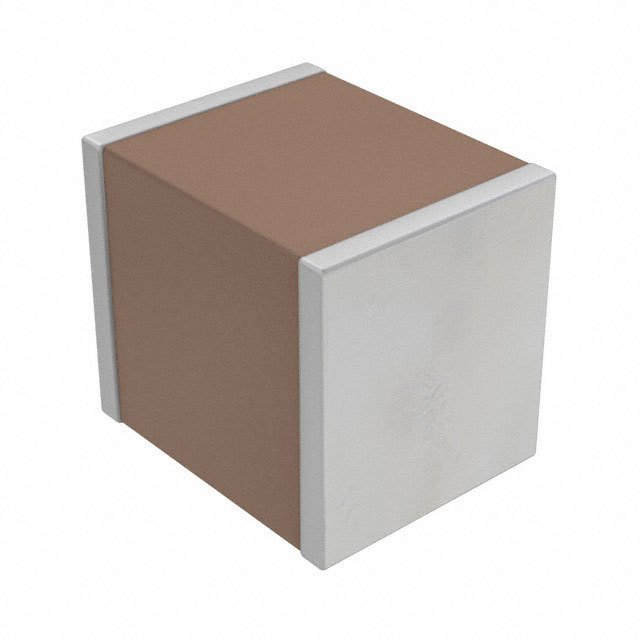

CGA6P1X7R1C226M250AC TDK Corporation
Same model may have multiple batches, images only for reference.

CGA6P1X7R1C226M250AC

Part No CGA6P1X7R1C226M250AC
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description Automotive Grade ( General (Up to 50V) )
Datasheet
CGA6P1X7R1C226M250AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series CGA
Packaging Reel - TR
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 16V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Package 1210
Size 0.126" L x 0.098" W (3.20mm x 2.50mm)
Thickness (Maximum) 0.110" (2.80mm)
RoHS State Request Verification
Win Source Part Number 1161403-CGA6P1X7R1C226M250AC
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name CGA
Introduction Date December 21, 2012
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CGA6P1X7R1C226M250AC CAD Model

Description

The TDK Corporation CGA Series Capacitor is a surface mount, MLCC capacitor that features a capacitance of 22μF and a voltage rating of 16V.

  • Capacitance: 22μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Application: Automotive
  • AEC-Q200 Rated: Yes
  • Package Size: 1210
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Operating Temperature Range: -55°C to 125°C
  • RoHS Compliant: Yes
  • Estimated EOL Date: 2026
