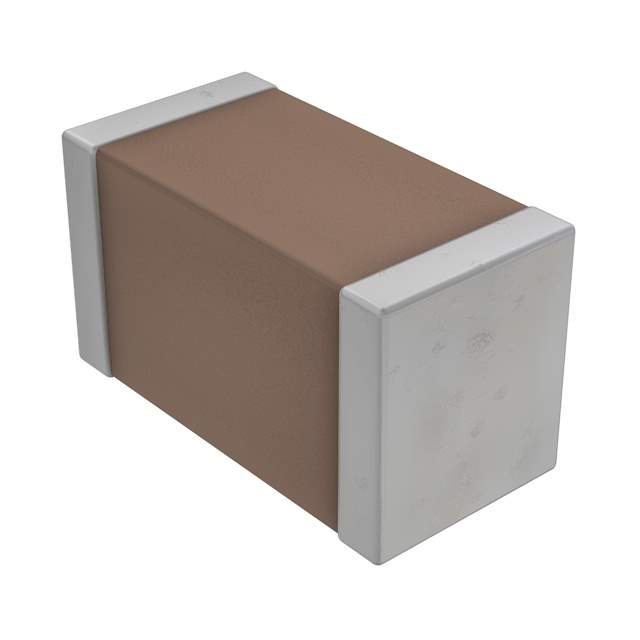

The CGA3E2X7R1C224K080AA is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. These capacitors are widely used in electronic circuits for decoupling, bypassing, filtering, and other general-purpose applications.

Applications

• Decoupling capacitors in digital circuits
• Bypass capacitors in power supplies
• Filtering applications
• General-purpose use in electronic circuits

Features

• Capacitance: 0.22µF (220nF)
• Voltage Rating: 16V DC
• Dielectric Material: X7R
• Case Size: 0603 (1608 Metric)
• Capacitance Tolerance: ±10%
• Operating Temperature Range: -55°C to +125°C
• RoHS Compliant

Benefits

• Stable capacitance over temperature variations (X7R dielectric)
• Small size for space-constrained applications
• Reliable performance in a wide range of operating conditions
• Cost-effective solution for general-purpose applications

Additional Details

The X7R dielectric offers a good balance between capacitance stability and temperature performance. The 0603 case size refers to the physical dimensions of the capacitor (1.6mm x 0.8mm). It's crucial to verify the voltage rating matches the application requirements. Refer to the TDK datasheet for detailed specifications, including ESR (Equivalent Series Resistance), ESL (Equivalent Series Inductance), and ripple current ratings. The 080AA suffix likely indicates specific packaging or termination characteristics. The CGA series is a common choice for MLCCs. The 'K' denotes a 10% capacitance tolerance.
