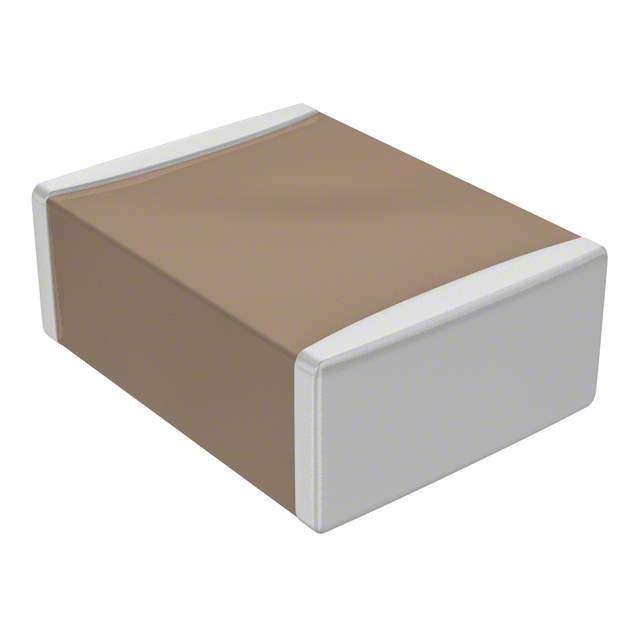

The C5750Y5V1E476ZT000N is a ceramic capacitor manufactured by TDK Corporation. It's part of the C5750 series, indicating a specific physical size. This capacitor excels in general-purpose applications, delivering a blend of performance and dependability in diverse electronic circuits.

Applications

• Power supply smoothing circuits to reduce ripple.
• Bypass capacitors for integrated circuits, ensuring stable operation.
• Decoupling capacitors in electronic systems to minimize noise.
• Filtering in signal processing circuits to remove unwanted frequencies.
• General applications in consumer electronics, computers, and smartphones.

Features

• High Capacitance: 47µF (476 indicates 47 x 10^6 pF).
• Voltage Rating: 25V (1E denotes 25V).
• Temperature Characteristic: Y5V, signifying substantial capacitance changes over temperature.
• Size: 5750 (5.7mm x 5.0mm).
• Termination: Sn (Tin).

Benefits

• Efficient Filtering: Stabilizes power delivery by removing noise and ripple.
• Compact Design: Enables high-density circuit boards.
• Cost-Effective: Balances performance and affordability, suitable for large-scale manufacturing.
• Reliable Performance: TDK is known for producing high-quality components.
• Reduces Voltage Spikes: Protects sensitive circuitry from voltage surges.

Additional Details

The Y5V temperature coefficient implies considerable capacitance variation with temperature, suitable where such variation is acceptable. The operating temperature typically ranges from -30°C to +85°C, with a capacitance tolerance of +80%/-20%. This component is appropriate for reflow soldering processes. It is frequently used in circuits where component size is crucial.
