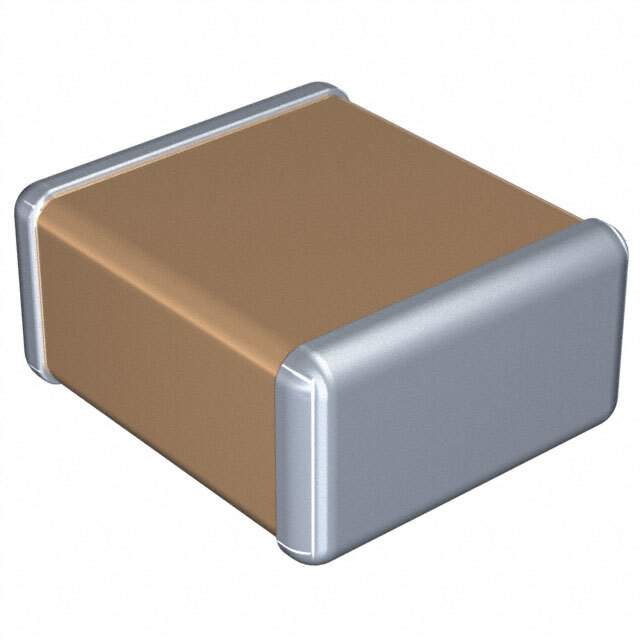

The C5750X7R1H685KT000N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It's designed for general-purpose applications, offering reliable performance in a standard SMD package.

Applications:

• Bypass Capacitors: Used to filter out unwanted noise and voltage fluctuations in electronic circuits.
• Decoupling Capacitors: Provides a stable voltage source near integrated circuits to minimize noise and improve performance.
• Smoothing Capacitors: Reduces ripple voltage in power supplies and other circuits.
• Filtering Applications: Used in various filtering circuits to pass or reject specific frequency ranges.
• Consumer Electronics: Commonly found in devices such as smartphones, tablets, and laptops.
• Industrial Equipment: Used in industrial control systems and other applications requiring stable capacitance.
• Automotive Electronics: Suitable for automotive applications when properly derated.

Features:

• Capacitance: 6.8µF capacitance value.
• Voltage Rating: 50V DC voltage rating.
• Temperature Characteristic: X7R dielectric, providing stable performance from -55°C to +125°C with a capacitance variation of ±15%.
• Case Size: 2220 (5750 Metric) case size.
• Termination: Nickel barrier termination for excellent solderability and prevention of solder leaching.
• RoHS Compliant: Compliant with RoHS directives, ensuring environmental friendliness.
• SMD (Surface Mount Device): Designed for surface mount technology assembly.

Benefits:

• Stable Performance: The X7R dielectric ensures stable capacitance over a wide temperature range.
• Reliable Operation: Manufactured using high-quality materials and processes, ensuring consistent performance.
• Space Saving: The compact 2220 case size allows for high-density circuit design.
• Easy Assembly: SMD design simplifies the assembly process and reduces manufacturing costs.
• Noise Suppression: Effectively reduces noise and voltage fluctuations, improving circuit performance.
• Versatile Application: Suitable for a wide range of applications due to its stable characteristics and capacitance value.
• Environmentally Friendly: RoHS compliance minimizes environmental impact.

Additional Details:

The C5750X7R1H685KT000N capacitor utilizes a ceramic dielectric material, offering good capacitance stability, voltage rating, and temperature performance. The capacitance change is within ±15% over the operating temperature range of -55°C to +125°C. The termination is typically a nickel barrier with a solder plating, ensuring excellent solderability and preventing leaching during soldering. Designed for reflow soldering processes and should be handled according to standard SMD assembly guidelines. It's commonly used in power supplies, consumer electronics, and industrial applications. Supplied on tape and reel for automated placement.
