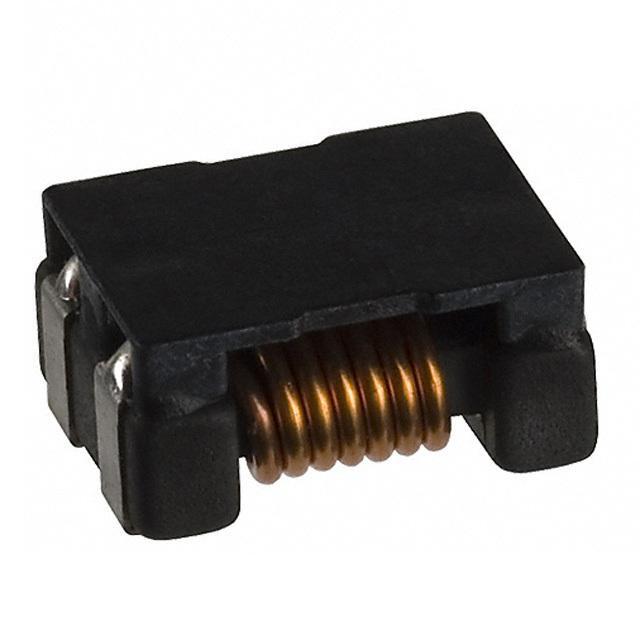

ACM9070-701-2PL-TL01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACM9070-701-2PL-TL01

Part No ACM9070-701-2PL-TL01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 5A 2LN 700 OHM SMD
Datasheet
ACM9070-701-2PL-TL01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohm @ 100MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 10 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.177" (4.50mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007862-ACM9070-701-2PL-TL01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM9070-701-2PL-TL01 CAD Model

Description

Product Overview

The ACM9070-701-2PL-TL01 is an exceptional component for tech-forward applications. Known for its innovation in electrical design, it provides reliable operations even under extreme conditions.

Features and Benefits

  • Outstanding performance metrics
  • Minimal signal interference
  • Long-lasting operation
  • Compact and lightweight

Applications

  • High-frequency communication systems
  • Robotics
  • Energy-efficient appliances
  • Automotive electronics

Additional Details: This component is particularly well-suited for applications that demand robust and efficient performance combined with cutting-edge technology features.
