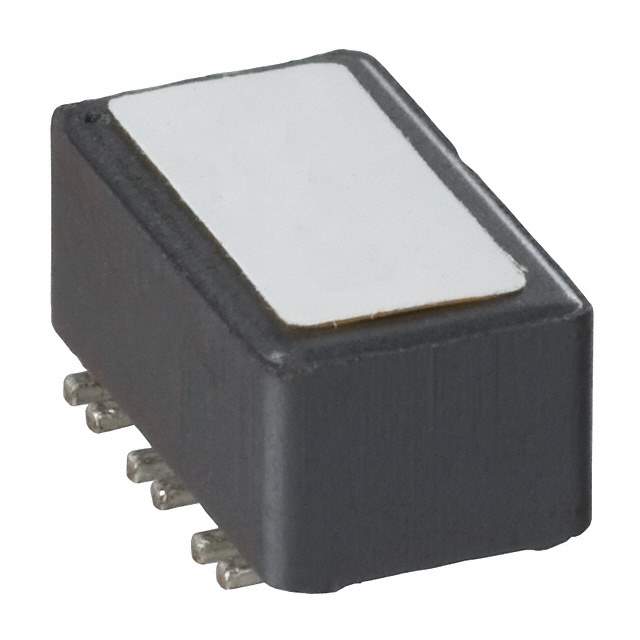

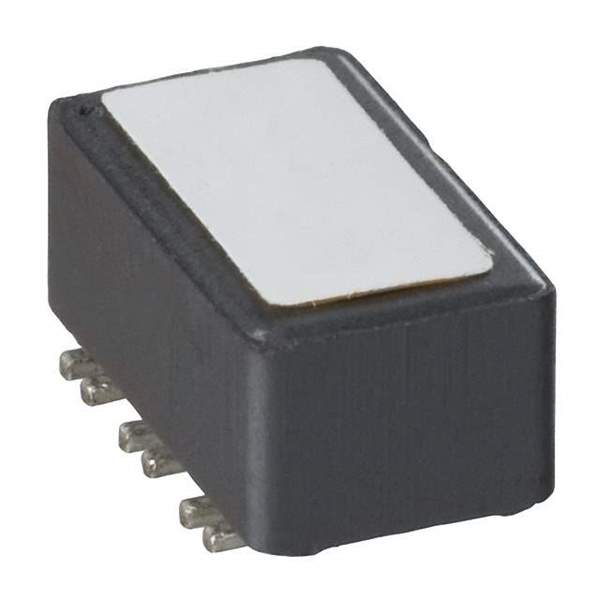

CM3822R800R-00

Part No CM3822R800R-00
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 5A 6LN 80 OHM SMD
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power Line
Number of Lines 6
Impedance @ Frequency 80 Ohm @ 100MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 20 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.197" (5.00mm)
Dimension Vertical, 12 Flat Lead
Win Source Part Number 103924-CM3822R800R-00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CM3822R800R-00 CAD Model

Description

CM3822R800R-00 Product Overview

The CM3822R800R-00 is engineered for high efficiency in challenging conditions, making it suitable for various demanding applications.
