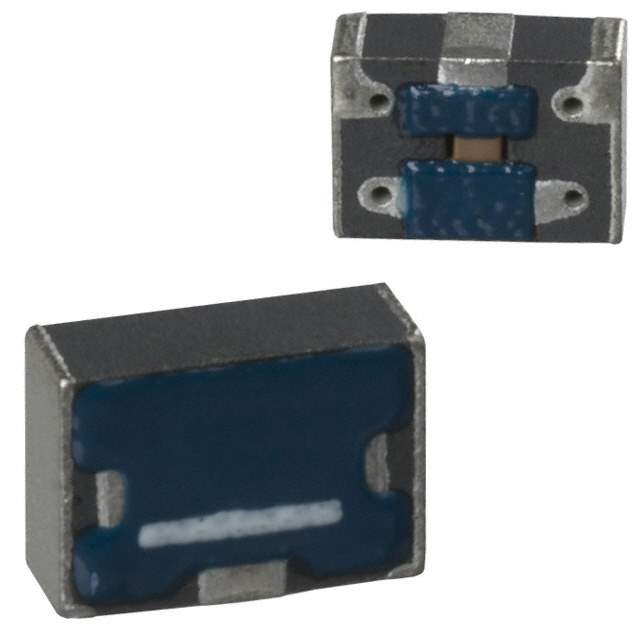

The ACH4518-102 is a common mode choke manufactured by TDK Corporation. It is designed to effectively suppress common mode noise in high-speed differential transmission lines, which is essential for maintaining signal integrity and reducing electromagnetic interference (EMI). This component is part of the ACH4518 series, recognized for its compact size and performance.

Applications:

• USB interfaces in computers and peripherals: Provides noise filtering for USB data lines.
• HDMI connections in TVs and monitors: Ensures high-quality video and audio transmission by reducing noise.
• LVDS lines in display panels: Filters noise in high-speed data transfer for clear display output.
• Automotive infotainment systems: Suppresses noise in communication lines within vehicles.
• Networking equipment (Ethernet): Reduces noise on network cables, improving data transmission reliability.

Features:

• Compact Size: A small footprint (4.5mm x 1.8mm) allows for dense component placement.
• High Common Mode Impedance: Offers effective suppression of unwanted common mode noise.
• Low Differential Mode Impedance: Minimizes signal distortion in differential transmission.
• Excellent Temperature Stability: Maintains stable performance across a wide temperature range.
• RoHS Compliant: Environmentally friendly, lead-free construction.

Benefits:

• Improved Signal Integrity: Reduces noise and interference, resulting in cleaner and more reliable signals.
• Reduced EMI: Minimizes electromagnetic radiation, aiding compliance with regulatory standards.
• Increased System Reliability: Protects sensitive components from noise-related damage.
• Smaller Device Size: Compact design contributes to the miniaturization of electronic devices.
• Cost-Effective Solution: Provides a dependable and affordable solution for common mode noise suppression.

Additional Details:

The ACH4518-102 has an impedance of 1000 Ohms (1kOhm) at 100 MHz. The rated current typically falls between 100mA and 300mA. The operating temperature range typically spans from -40°C to +85°C. This component is designed for surface mount technology (SMT) and is compatible with automated assembly processes. The choke's internal structure optimizes common mode impedance while minimizing differential mode impedance. Careful consideration of the soldering profile during assembly is crucial to ensure optimal performance and longevity of the component.
