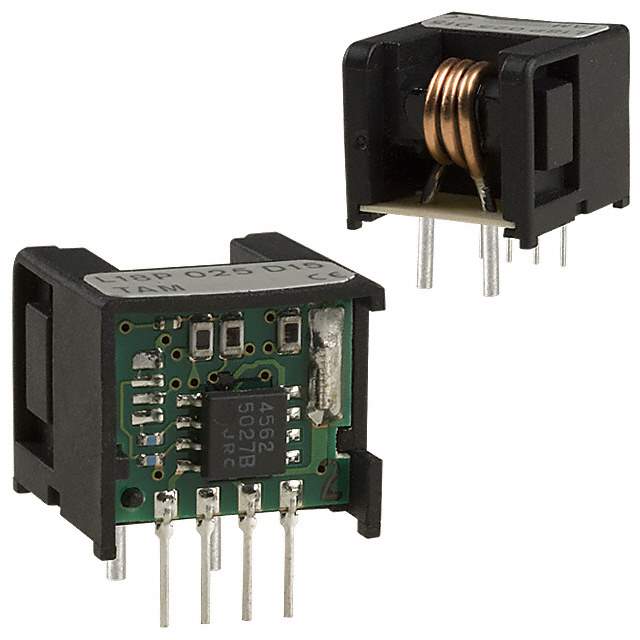

Same model may have multiple batches, images only for reference.

L18P025D15

Name: L18P025D15
Brand: Tamura
SKU: 1128223
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	L18P025D15
Manufacturer	Tamura
Catalog	Current Transducers
Description	SENSOR CURRENT HALL 25A AC/DC / Current Sensor 25A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Current Sensors
Mfr	Tamura
Package	Bulk
Product Status	Obsolete
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	25A
Number of Channels	1
Output	Ratiometric, Voltage
Frequency	DC ~ 100kHz
Linearity	±1%
Voltage - Supply	±15V
Response Time	5µs
Current - Supply (Max)	15mA
Temperature Range - Operating	-30°C ~ 80°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package / Case	Module
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	9030.33.3800
Other Names	MT7316,S1-L18P025D15EY
Standard Package	600
Win Source Part Number	1128223-L18P025D15
Ultra Librarian 3D Model	Ultra Librarian L18P025D15 CAD Model

Description

The Tamura MT7316, S1-L18P025D15EY is a Hall Effect open loop sensor with a bidirectional polarization.

Current Sensing: 25A
Linearity: ±1%
Output: ratiometric voltage
Polarization: bidirectional
Measurement: AC/DC
Supply Voltage: ±15V
Maximum Current Supply: 15mA
Response Time: 5µs
Frequency Range: DC to 100kHz
Package: module
Mounting: through-hole
Operating Temperature: -30°C to 80°C
Status: obsolete
Standard Package: 600
