Same model may have multiple batches, images only for reference.

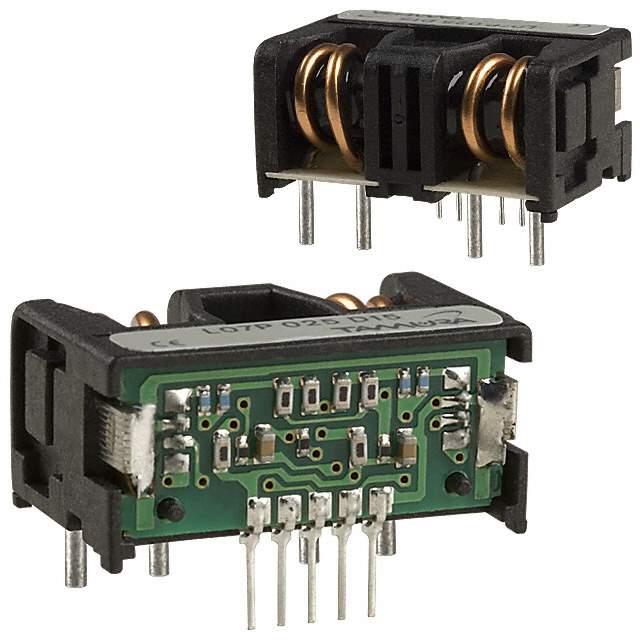

L07P025D15 Real Image
Same model may have multiple batches, images only for reference.

L07P025D15

Part No L07P025D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 25A AC/DC / Current Sensor 25A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Manufacturer Tamura
Packaging Bulk
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 25A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 100kHz
Linearity ±1%
Voltage - Supply ±15V
Response Time 5µs
Current - Supply (Max) 30mA
Temperature Range - Operating -30°C ~ 80°C
Polarization Bidirectional
Mounting Through Hole
Case / Package Module
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9030.33.3800
Other Part Number S1-L07P025D15EY,MT7302
Standard Package 100
Win Source Part Number 1336572-L07P025D15
Ultra Librarian 3D Model Ultra Librarian L07P025D15 CAD Model

Description

The Tamura current sensor is a high-performance sensor that is designed to measure bidirectional current in AC/DC circuits.

  • Sensor Type: Hall Effect, Open Loop
  • Current-Sensing Capacity: 25A
  • Response Time: 5 microseconds
  • Sensitivity: ±1%
  • Output: ratiometric voltage
  • Maximum Current Supply: 30mA
  • Voltage Supply: ±15V
  • Package: module case
  • Operating Temperature: -30°C to 80°C
  • Status: Obsolete
  • RoHS Compliant: true
  • ECCN: EAR99
