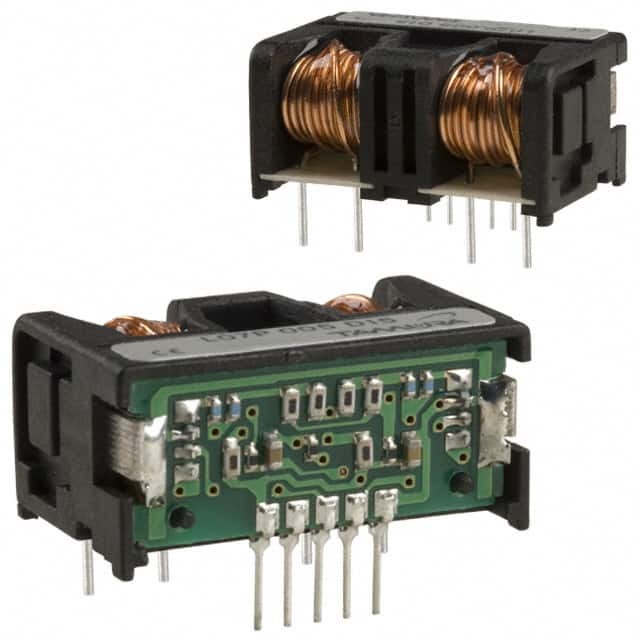

Same model may have multiple batches, images only for reference.
L07P005D15
Same model may have multiple batches, images only for reference.

L07P005D15

Part No L07P005D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 5A AC/DC / Current Sensor 5A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Tamura
Series L07P
Package Bulk
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 5A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 100kHz
Linearity ±1%
Voltage - Supply ±15V
Response Time 5µs
Current - Supply (Max) 30mA
Temperature Range - Operating -30°C ~ 80°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 100 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 922582-L07P005D15
Ultra Librarian 3D Model Ultra Librarian L07P005D15 CAD Model

Description

The L07P005D15 is a current sensor from Tamura's L07P series.

  • Product Name: L07P005D15
  • Manufacturer: Tamura
  • Series: L07P
  • Type: Hall Effect Sensor
  • Sensing Range: 5A
  • Output: Ratiometric Voltage
  • Response Time: 5 μs
  • Supply Voltage: ±15V
  • Current Consumption: 30mA
  • Mounting: Through-Hole
  • Package: Module
  • Temperature Range: -30°C to 80°C
