Same model may have multiple batches, images only for reference.

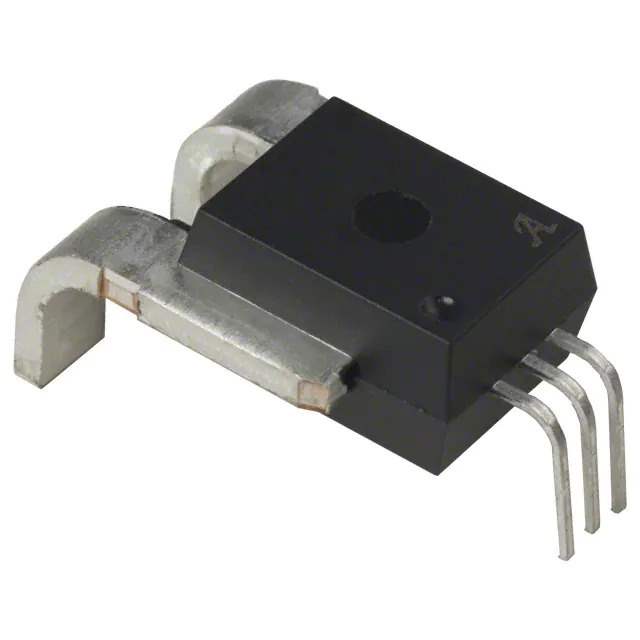

ACS750ECA-100 Real Image
Same model may have multiple batches, images only for reference.

ACS750ECA-100

Part No ACS750ECA-100
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 100A AC/DC
Datasheet
ACS750ECA-100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Allegro MicroSystems, LLC
Package Tube
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 19.75mV/A
Frequency DC ~ 13kHz
Linearity ±5%
Accuracy ±1.5%
Voltage - Supply 5V
Response Time 27µs
Current - Supply (Max) 10mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case 5-CA Formed Leads, PFF
Supplier Device Package 5-CA Module
Standard Package 170 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 848339-ACS750ECA-100
Ultra Librarian 3D Model Ultra Librarian ACS750ECA-100 CAD Model

Description

The ACS750ECA-100 is a current sensor based on the Hall Effect principle.

  • Type: Current Sensor
  • Principle: Hall Effect
  • Current Range: Up to 100A AC/DC
  • Polarization: Bidirectional
  • Output: Ratiometric Voltage
  • Sensitivity: 19.75mV/A
  • Accuracy: ±1.5%
  • Voltage Supply: 5V
  • Response Time: 27μs
  • Package: Through-Hole
  • Product Status: Obsolete
  • Manufacturer: Allegro MicroSystems, LLC
  • Function: Current Sensing
