Same model may have multiple batches, images only for reference.

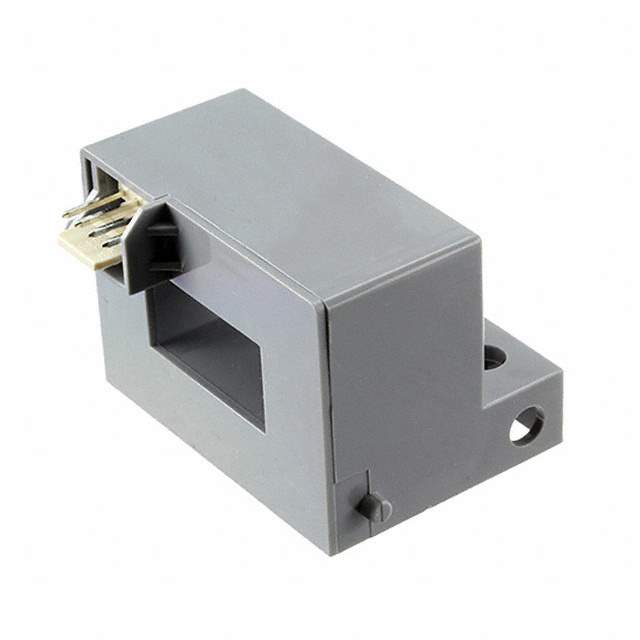

CSCA0600A000B15B01 Real Image
Same model may have multiple batches, images only for reference.

CSCA0600A000B15B01

Part No CSCA0600A000B15B01
Manufacturer Honeywell
Catalog Current Transducers
Description SENSOR CURRENT HALL 600A AC/DC / Current Sensor 600A 1 Channel Hall Effect, Open Loop Bidirectional Module
Datasheet
CSCA0600A000B15B01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 600A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 50kHz
Linearity ±1%
Accuracy ±2%
Voltage - Supply ±15V
Response Time 3µs
Current - Supply (Max) 17mA
Temperature Range - Operating -10°C ~ 80°C
Polarization Bidirectional
Mounting Chassis Mount
Case / Package Module
Base Product Number CSCA0600
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Part Number 480-6168,CSCA0600A000B15B01-ND
Standard Package 25
Win Source Part Number 1336531-CSCA0600A000B15B01
Ultra Librarian 3D Model Ultra Librarian CSCA0600A000B15B01 CAD Model

Description

The Honeywell CSCA0600A000B15B01 is a Hall Effect open loop current sensor designed to measure bidirectional AC/DC current up to 600A.

  • Sensor Type: Hall Effect open loop
  • Current Measurement: bidirectional AC/DC current up to 600A
  • Output: ratiometric voltage
  • Response Time: 3µs
  • Linearity: ±1%
  • Accuracy: ±2%
  • Voltage Supply: ±15V
  • Maximum Current Consumption: 17mA
  • Package: module
  • Mounting Type: chassis mounted
