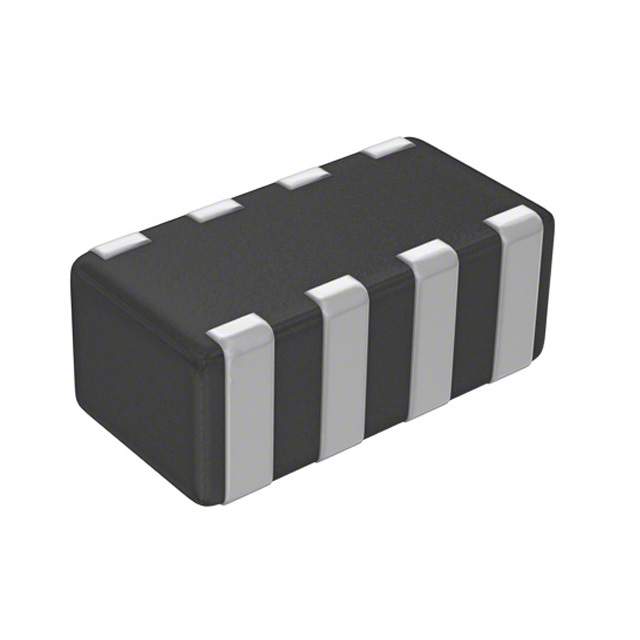

MCF20104G900-T Taiyo Yuden
Same model may have multiple batches, images only for reference.

MCF20104G900-T

Part No MCF20104G900-T
Manufacturer Taiyo Yuden
Catalog Common Mode Chokes
Description CMC 100MA 4LN 90 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 4.5 Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.022" (0.55mm)
Dimension 0804 (2010 Metric), 8 Lead
Win Source Part Number 101579-MCF20104G900-T
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian MCF20104G900-T CAD Model

Description

The Taiyo Yuden MCF20104G900-T is a signal line filter with a 90 Ohm impedance @ 100MHz.

  • Current Rating: 100mA
  • Voltage Rating: 5V
  • GPTDescription: making it suitable for use in a variety of electronic applications.
  • GPTDescription: The filter is supplied in a reel-tr packaging and has a height of 0.022 inches.
  • GPTDescription: It has a temperature range of -40°C to 85°C, making it suitable for use in harsh environments.
  • GPTDescription: It is supplied in a package of 4k pcs, making it easy to stock up on.
