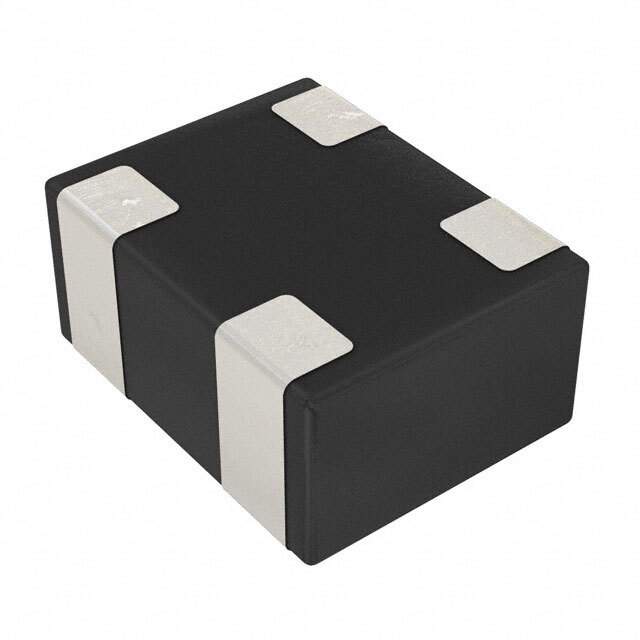

MCF08062E300-T Real Image
Same model may have multiple batches, images only for reference.

MCF08062E300-T

Part No MCF08062E300-T
Manufacturer Taiyo Yuden
Catalog Common Mode Chokes
Description CMC 100MA 4LN 30 OHM SMD / 4 Line Common Mode Choke Surface Mount 30 Ohms @ 100 MHz 100mA DCR 1.5Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Taiyo Yuden
Series MC
Package Tape & Reel (TR)
Product Status Obsolete
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 30 Ohms @ 100 MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 1.5Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) 0.018" (0.45mm)
Package / Case 0302 (0806 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names LR MCF08062E300-T,MCF08062E300T
Standard Package 10,000
Win Source Part Number 962438-MCF08062E300-T
Ultra Librarian 3D Model Ultra Librarian MCF08062E300-T CAD Model

Description

The Taiyo Yuden MCF08062E300-T is a common mode choke filter used for signal line filtering.

  • Voltage Rating: 5V
  • Current Rating: 100mA
  • Standard Package: 10,000
  • Mounting Type: SMD
  • Height: 0.018" (0.45mm)
  • Dimension: 0.033" L x 0.026" W (0.85mm x 0.65mm)
  • Lines: Four
  • Impedance: 30 Ohms @ 100 MHz
  • DC Resistance (DCR): 1.5Ohm Max
  • Temperature Range: -40°C to 85°C
  • MSL Level: Unlimited
  • HTSUS code: 8548.00.0000
