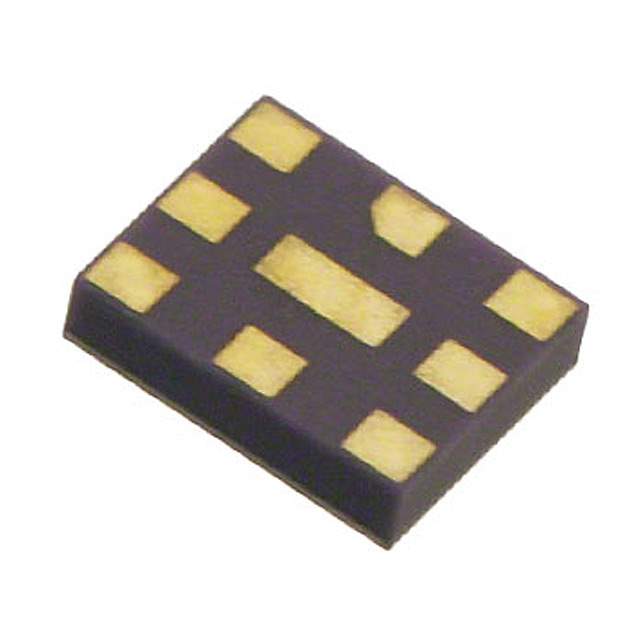

The FAR-D6NH-1G9600-M1Z9 is a SAW (Surface Acoustic Wave) filter manufactured by Taiyo Yuden. This filter is designed for use in wireless communication systems, providing precise filtering of signals at specific frequencies to improve performance and reduce interference.

Applications:

• Wireless Communication Systems: Used in various wireless devices for signal filtering.
• Mobile Phones: Employed in mobile phones for RF signal processing.
• Wireless LAN (WLAN): Integrated into WLAN devices such as routers and access points for filtering signals.
• Bluetooth Devices: Used in Bluetooth modules for bandpass filtering.
• GPS Receivers: Employed in GPS devices for filtering GPS signals.

Features:

• SAW Filter Technology: Provides high-precision filtering.
• Compact Size: Enables integration into small devices.
• Low Insertion Loss: Minimizes signal attenuation within the passband.
• High Attenuation: Provides effective rejection of unwanted signals.
• Stable Performance: Offers consistent performance over a wide temperature range.
• Surface Mount Technology (SMT): Designed for automated assembly.

Benefits:

• Improved Signal Quality: Enhances the clarity and strength of desired signals.
• Reduced Interference: Minimizes unwanted signals, improving system performance.
• Reliable Performance: Provides consistent operation in various environmental conditions.
• Compact Design: Enables integration into space-constrained applications.

Additional Details:

The FAR-D6NH-1G9600-M1Z9 is specifically designed to operate at a particular frequency range (around 1.96 GHz), making it ideal for applications requiring precise filtering at this frequency. It is typically used in RF front-end modules to improve the sensitivity and selectivity of wireless receivers. The filter is available in a small surface-mount package, allowing for easy integration into various wireless systems. The FAR-D6NH-1G9600-M1Z9 SAW filter is a crucial component for maintaining the performance and reliability of wireless communication devices.
