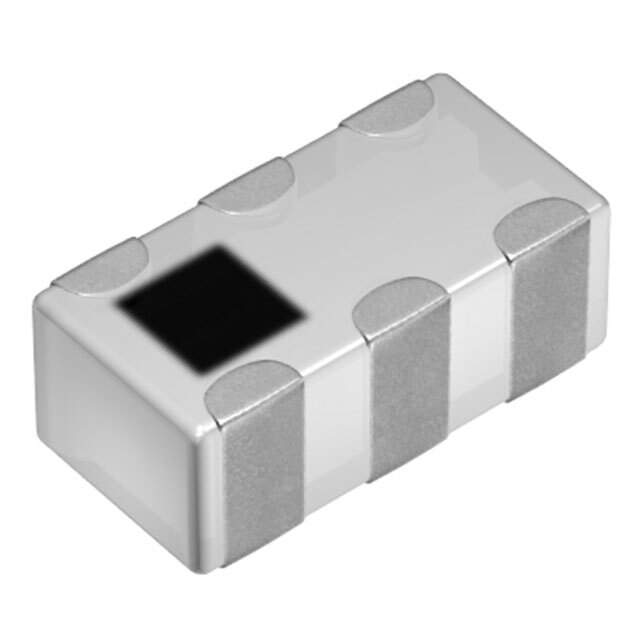

DPX202700DT-4162A1 Real Image
Same model may have multiple batches, images only for reference.

DPX202700DT-4162A1

Part No DPX202700DT-4162A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description Multilayer Diplexer | MULTILAYER DIPLEXER FOR 698 - 96
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel
Type Diplexer
Frequency Bands (Low / High) 698MHz ~ 960MHz / 1.71GHz ~ 2.7GHz
Low Band Attenuation (min / max dB) 30.00dB / 39.10dB
High Band Attenuation (min / max dB) 25.00dB / 29.70dB
Return Loss (Low Band / High Band) 10.03dB / 10.03dB
Mounting Style SMD
Manufacturer Package 0805 , 6 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 737936-DPX202700DT-4162A1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DPX202700DT-4162A1 CAD Model

Description

This electronic component is a diplexer manufactured by TDK Corporation with the Win Source Part Number 737936-DPX202700DT-4162A1. It comes in a reel packaging and has a surface mount device (SMD) mounting style.

  • Frequency band: 698MHz to 960MHz and 1.71GHz to 2.7GHz
  • Low band attenuation: 30.00dB to 39.10dB
  • High band attenuation: 25.00dB to 29.70dB
  • Return loss for both low and high bands: 10.03dB
  • Manufacturer package: 0805 with 6 PC pads
  • Supply and demand status: sufficient
  • Manufacturer pack quantity: 1
  • MSL level: 1 (Unlimited)
