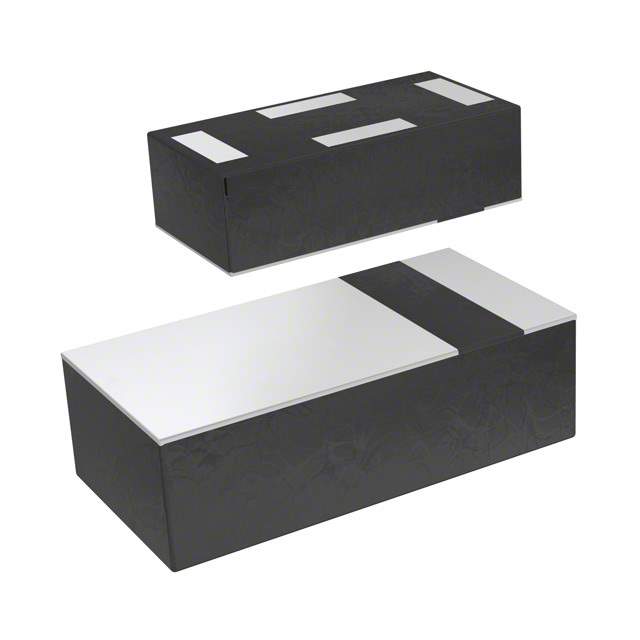

TFSD10055950-5001C1 Real Image
Same model may have multiple batches, images only for reference.

TFSD10055950-5001C1

Part No TFSD10055950-5001C1
Manufacturer TDK Corporation
Catalog Electronic Wholesale
Description Thin-film Diplexer | RF DIPLEXER 2.45GHZ/5.45GHZ 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Diplexer
Frequency Bands (Low / High) 2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz
Low Band Attenuation (min / max dB) 20.00dB / 29.00dB
High Band Attenuation (min / max dB) 18.00dB / 26.00dB
Return Loss (Low Band / High Band) 21.0dB / 23.0dB
Mounting Style SMD
Manufacturer Package 0402 (1005 Metric)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1266873-TFSD10055950-5001C1
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TFSD10055950-5001C1 CAD Model

Description

The TDK TFSD10055950-5001C1 diplexer is a surface-mount device designed for use in RF/IF and RFID applications.

  • Frequency Bands: 2.4GHz to 2.5GHz and 4.9GHz to 6GHz
  • Low Band Attenuation: 20.00dB to 29.00dB
  • High Band Attenuation: 18.00dB to 26.00dB
  • Return Loss (Low Band): 21.0dB
  • Return Loss (High Band): 23.0dB
  • Package: 0402 (1005 Metric)
  • Packaging: Reel
  • Status: Obsolete
  • Popularity: Medium
  • Manufacturer Homepage: www.tdk.com
