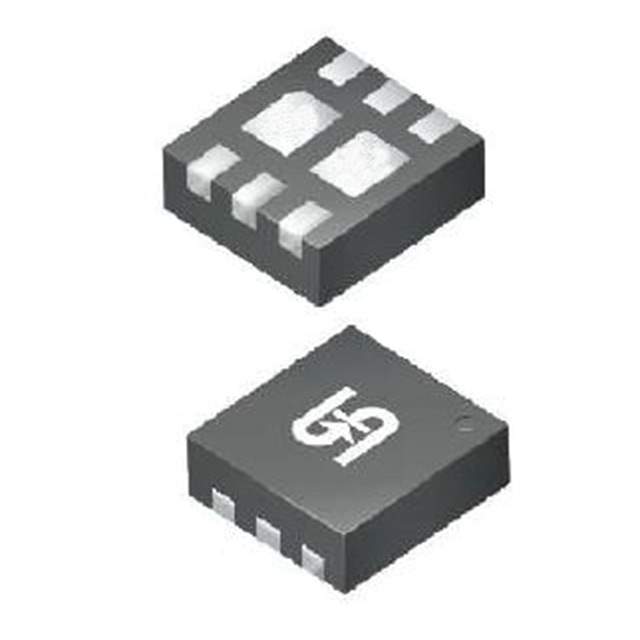

TSM301K12CQ RFG Real Image
Same model may have multiple batches, images only for reference.

TSM301K12CQ RFG

Part No TSM301K12CQ RFG
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 4.5A 6TDFN / P-Channel 20 V 4.5A (Ta) 6.5W (Tc) Surface Mount 6-TDFN (2x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Rds On (Max) @ Id, Vgs 94mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id 500mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs 4.5 nC @ 4.5 V
Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 5.2 pF @ 6 V
Power Dissipation (Max) 6.5W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 6-TDFN (2x2)
Package / Case 6-VDFN Exposed Pad
Base Product Number TSM301
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names TSM301K12CQRFGTR,TSM301K12CQ RFGCT,TSM301K12CQRFGTR-ND,1801-TSM301K12CQRFGTR,TSM301K12CQRFGCT-ND,TSM301K12CQ RFGCT-ND,TSM301K12CQRFGDKR,1801-TSM301K12CQRFGDKR,TSM301K12CQRFGCT,TSM301K12CQ RFGTR-ND,1801-TSM301K12CQRFGCT,TSM301K12CQ RFGDKR,TSM301K12CQ RFGDKR-ND,TSM301K12CQRFGDKR-ND,TSM301K12CQ RFGTR
Standard Package 3,000
Win Source Part Number 1094406-TSM301K12CQ RFG
Ultra Librarian 3D Model Ultra Librarian TSM301K12CQ RFG CAD Model

Description

The Taiwan Semiconductor TSM301K12CQ RFG is a P-Channel MOSFET (Metal Oxide) component with a drain-to-source voltage of 20 V and continuous drain current of 4.5A (Ta).

  • Maximum Rds On: 94mOhm @ 2.8A, 4.5V
  • Gate Charge: 4.5 nC @ 4.5 V
  • Package: 6-VDFN Exposed Pad
  • Supplier Device Package: 6-TDFN (2x2)
  • Supply and Demand Status: balance
  • ECCN: EAR99
  • HTSUS: 8541.29.0095
