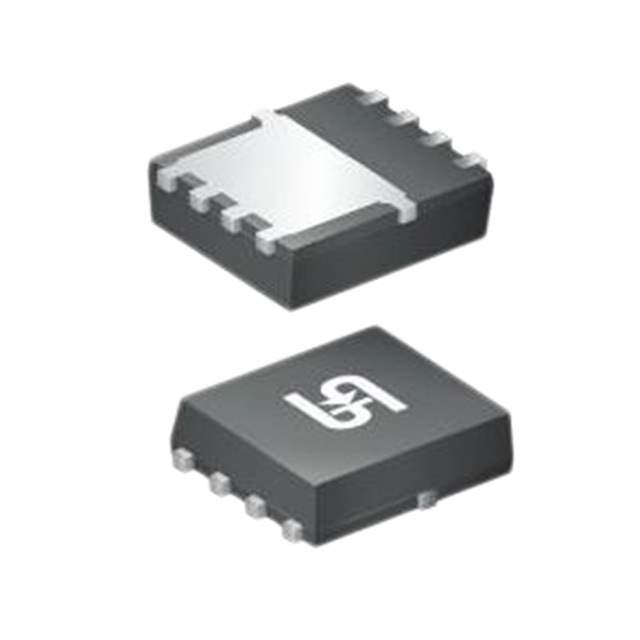

TSM038N03PQ33 RGG

Name: TSM038N03PQ33 RGG
Brand: Taiwan Semiconductor
SKU: 1101430
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TSM038N03PQ33 RGG
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 78A 8PDFN / N-Channel 30 V 78A (Tc) 39W (Tc) Surface Mount 8-PDFN (3.1x3.1)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Taiwan Semiconductor Corporation
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2557 pF @ 15 V
Power Dissipation (Max)	39W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	8-PDFN (3.1x3.1)
Package / Case	8-PowerWDFN
Base Product Number	TSM038
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	TSM038N03PQ33 RGGCT,TSM038N03PQ33 RGGDKR-ND,TSM038N03PQ33RGGDKR,TSM038N03PQ33 RGGCT-ND,TSM038N03PQ33RGGCT,TSM038N03PQ33 RGGTR,TSM038N03PQ33 RGGDKR,TSM038N03PQ33RGGTR,TSM038N03PQ33 RGGTR-ND
Standard Package	10,000
Win Source Part Number	1101430-TSM038N03PQ33 RGG
Ultra Librarian 3D Model	Ultra Librarian TSM038N03PQ33 RGG CAD Model

Alternative Products

Description

The 1101430-TSM038N03PQ33 RGG is an N-Channel MOSFET transistor that is widely used in Discrete Semiconductor Products, particularly in Transistors - FETs, MOSFETs - Single category.

Drain to Source Voltage (Vdss): 30 V
Continuous Drain Current: 78A (Tc) @ 25°C
Rds On (Max) @ Id, Vgs: 3.8mOhm @ 19A, 10V
Package: 8-PowerWDFN
Supplier Device Package: 8-PDFN (3.1x3.1)
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2557 pF @ 15 V
Temperature Range: -55°C ~ 150°C (TJ)
Manufacturer: Taiwan Semiconductor Corporation
