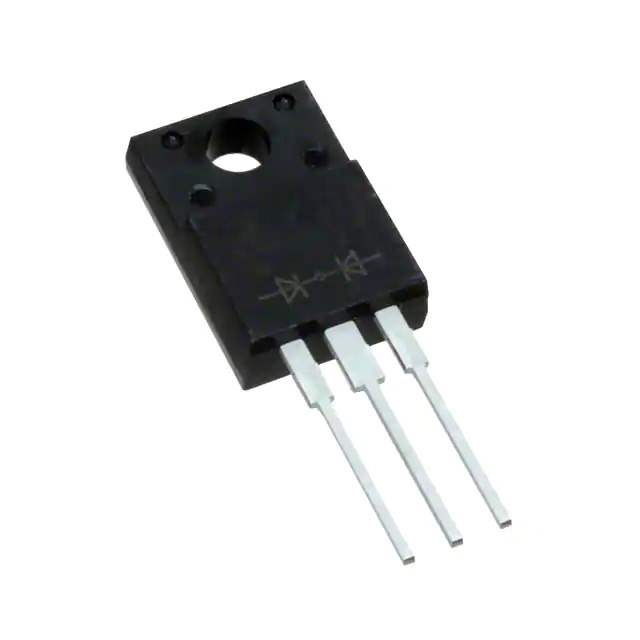

TSF10H45C Real Image
Same model may have multiple batches, images only for reference.

TSF10H45C

Part No TSF10H45C
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTT 45V ITO220AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 480 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 45 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack, Isolated Tab
Supplier Device Package ITO-220AB
Base Product Number TSF10
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 692004-TSF10H45C
Ultra Librarian 3D Model Ultra Librarian TSF10H45C CAD Model

Description

The 692004-TSF10H45C is a diode rectifier array from Taiwan Semiconductor.

  • Type: Diode Rectifier Array
  • Recovery: Fast Recovery (< 500ns)
  • Reverse Voltage: 45V (Maximum)
  • Forward Voltage: 480mV @ 5A
  • Configuration: 1 Pair Common Cathode
  • Rectified Current: 5A (Average per Diode)
  • Package: TO-220-3 Full Pack (Isolated Tab)
  • Supplier Device Package: ITO-220AB
  • Temperature Range: -55°C to 150°C
  • Technology: Schottky
  • Market Status: Active
  • Applications: Diode Rectification
