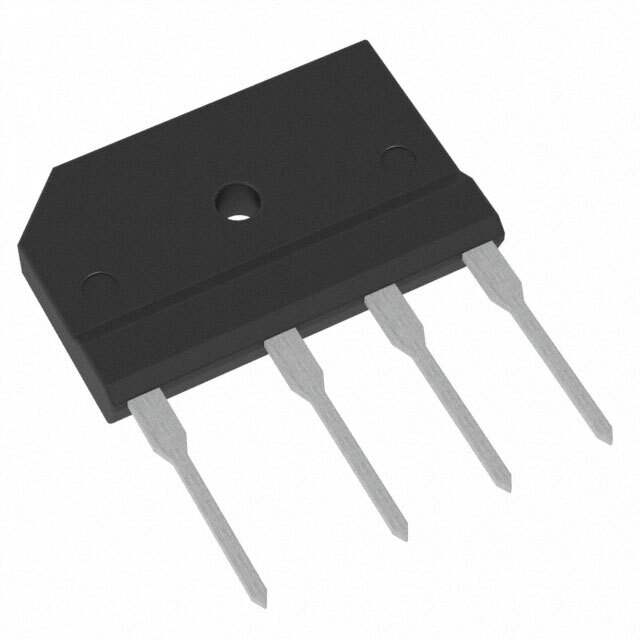

TS20P04G

Part No TS20P04G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 400V 20A TS-6P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Discontinued
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 20 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 20 A
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS20P04
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691502-TS20P04G
Ultra Librarian 3D Model Ultra Librarian TS20P04G CAD Model

Description

The TS20P04G is a single-phase bridge rectifier with a maximum peak reverse voltage of 400V and an average rectified current of 20A.

  • Voltage Forward: 1.1V @ 20A
  • Reverse Leakage Current: 10μA @ 400V
  • Mounting: Through-hole
  • Package: 4-SIP, TS-6P
  • Series: TS20P04 series from Taiwan Semiconductor
  • Temperature Range: -55°C to 150°C
  • Applications: Power supplies, battery chargers, and voltage converters
