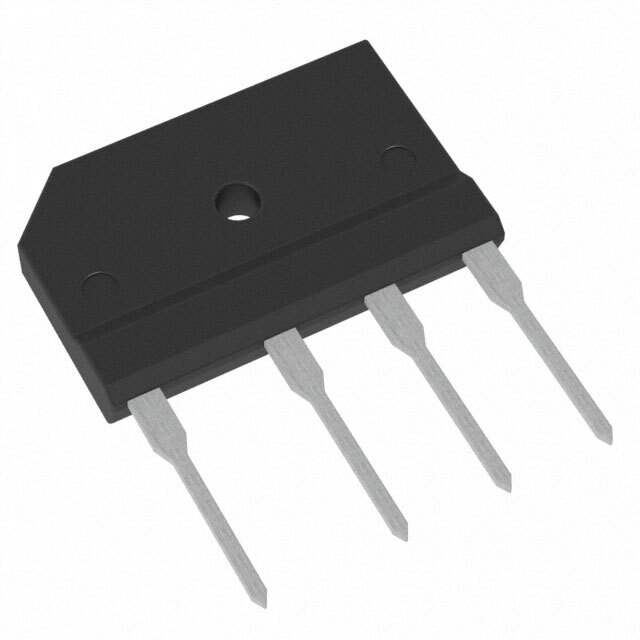

TS15PL06G Real Image
Same model may have multiple batches, images only for reference.

TS15PL06G

Part No TS15PL06G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 800V 15A TS-6P / Bridge Rectifier Single Phase Standard 800 V Through Hole TS-6P
Datasheet
TS15PL06G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 15 A
Voltage - Forward (Vf) (Max) @ If 930 mV @ 7.5 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS15PL06
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691482-TS15PL06G
Ultra Librarian 3D Model Ultra Librarian TS15PL06G CAD Model

Description

The 691482-TS15PL06G is a bridge rectifier diode designed for single-phase rectification. It has a maximum peak reverse voltage of 800V and an average rectified current of 15A, making it suitable for high-power applications.

  • Diode Type: Bridge Rectifier, Single Phase
  • Vrrm: 800V
  • If(AV): 15A
  • Package / Case: 4-SIP, TS-6P
  • Operating Temperature: -55°C ~ 150°C
