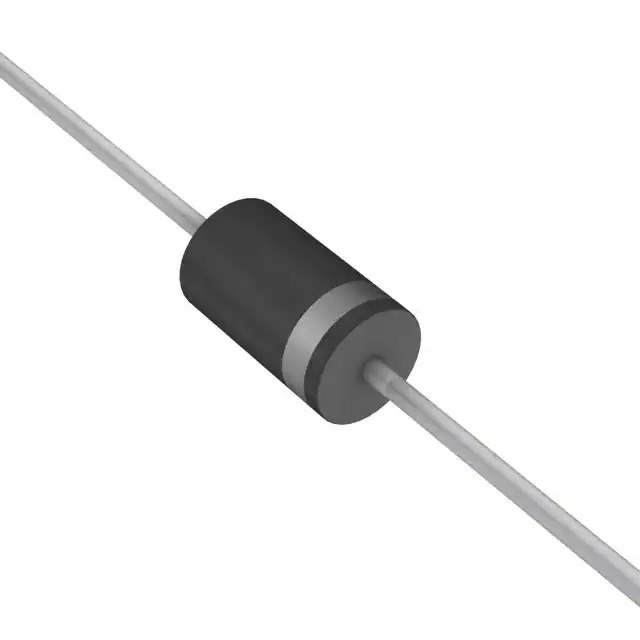

SR504 Real Image
Same model may have multiple batches, images only for reference.

SR504

Part No SR504
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 5A DO201AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SR504
Standard Package 1,250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 675940-SR504
Ultra Librarian 3D Model Ultra Librarian SR504 CAD Model

Description

The 675940-SR504 is a fast recovery Schottky diode rectifier designed for use in discrete semiconductor products.

  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current: 5A
  • Forward Voltage Drop @ 5A: 550mV
  • Reverse Leakage Current @ Maximum Reverse Voltage: 500μA
  • Operating Temperature Range: -55°C to 125°C
  • Package Type: DO-201AD
  • Mounting Type: Through-hole
  • Packaging: Tape and reel
  • Standard Package: 1,250 pcs
  • Manufacturer: Taiwan Semiconductor
  • Status: Active
