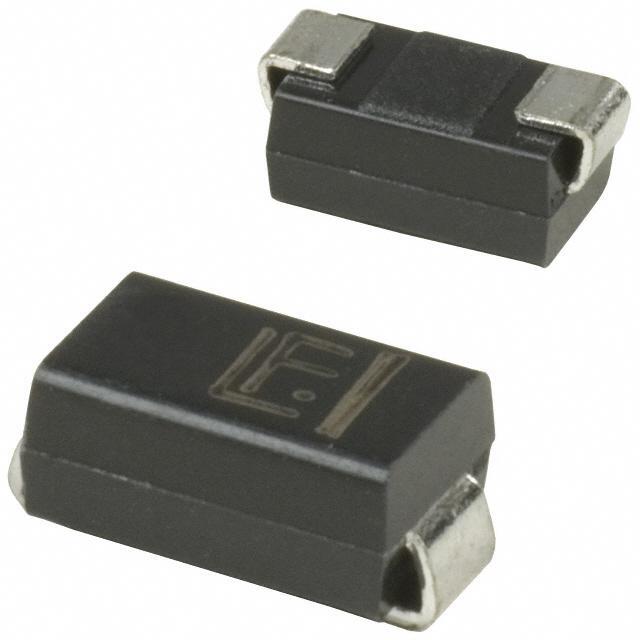

SMAJ120

Name: SMAJ120
Brand: Taiwan Semiconductor
SKU: 895614
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMAJ120
Manufacturer	Taiwan Semiconductor
Catalog	TVS - Diodes
Description	300W, 148V, 10%, UNIDIRECTIONAL, / 214V Clamp 1.4A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Taiwan Semiconductor
Series	SMAJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	120V
Voltage - Breakdown (Min)	133V
Voltage - Clamping (Max) @ Ipp	214V
Current - Peak Pulse (10/1000µs)	1.4A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Base Product Number	SMAJ120
Standard Package	7,500 pcs
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	895614-SMAJ120
Ultra Librarian 3D Model	Ultra Librarian SMAJ120 CAD Model

Alternative Products

Description

The 895614-SMAJ120 is a TVS diode designed for transient voltage suppression and protection in electronic circuits.

Type: Unidirectional zener diode
Reverse Standoff Voltage: 120V
Breakdown Voltage: 133V
Clamping Voltage: 214V @ peak pulse current (Ipp)
Peak Pulse Power: 400W
Peak Pulse Current: 1.4A @ pulse width of 10/1000µs
Series: SMAJ
Manufacturer: Taiwan Semiconductor
Application: General-purpose
Package: DO-214AC (SMA)
Operating Temperature Range: -55°C to 150°C
