Same model may have multiple batches, images only for reference.

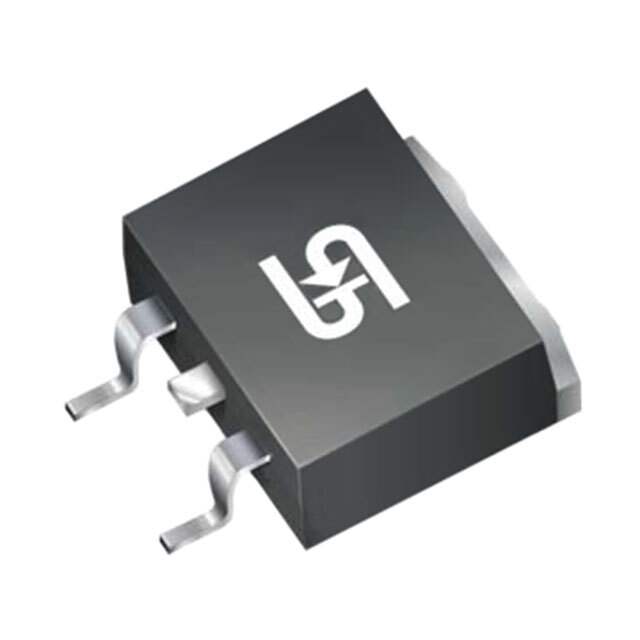

MBRS1545CT Real Image
Same model may have multiple batches, images only for reference.

MBRS1545CT

Part No MBRS1545CT
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 45V TO263AB / Diode Array 1 Pair Common Cathode 45 V 15A Surface Mount TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 840 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 45 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
Base Product Number MBRS1545
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 633803-MBRS1545CT
Ultra Librarian 3D Model Ultra Librarian MBRS1545CT CAD Model

Description

The MBRS1545CT is a diode array designed for rectification applications.

  • Manufacturer: Taiwan Semiconductor
  • Type: Fast recovery Schottky diode array
  • Package: Surface mount TO-263AB
  • Maximum Reverse Voltage: 45V
  • Forward Voltage Drop: 840mV @ 15A
  • Reverse Leakage Current: 100μA @ maximum reverse voltage
  • Features: Fast recovery time and high current capability
  • Application: High-frequency rectification applications
  • Mounting: Surface mount
  • Status: Active
  • Packaging: Tape and reel
