Same model may have multiple batches, images only for reference.

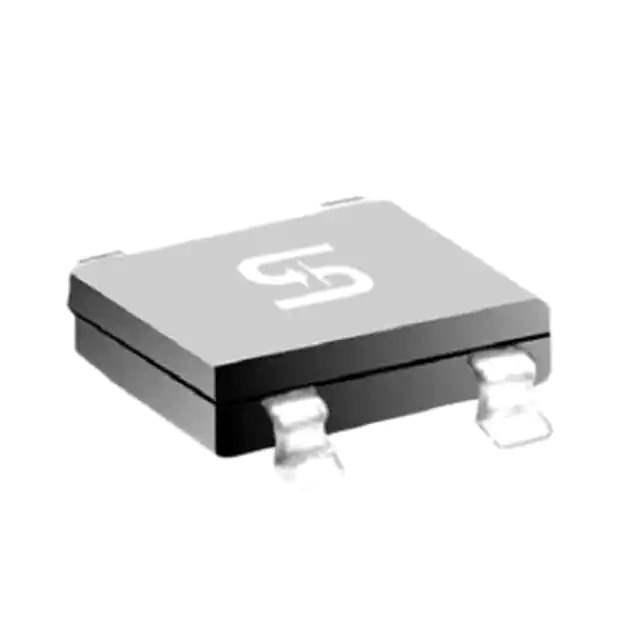

DBLS159G Real Image
Same model may have multiple batches, images only for reference.

DBLS159G

Part No DBLS159G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 1.4KV 1.5A DBLS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.4 kV
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 1.5 A
Current - Reverse Leakage @ Vr 2 µA @ 1400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DBLS
Base Product Number DBLS159
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584148-DBLS159G
Ultra Librarian 3D Model Ultra Librarian DBLS159G CAD Model

Description

The 584148-DBLS159G is a single-phase bridge rectifier from Taiwan Semiconductor.

  • Application: Standard
  • Current Rating: 1.5 A
  • Forward Voltage: 1.25 V @ 1.5 A
  • Reverse Leakage Current: 2 μA @ 1400 V
  • Peak Reverse Voltage: 1.4 kV
  • Mounting: Surface mountable
  • Package: 4-SMD, gull wing
  • Package Quantity: 1,500 pieces
  • Operating Temperature: -55°C to 150°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Status: Active
  • Application: Power supply circuits and rectification applications
