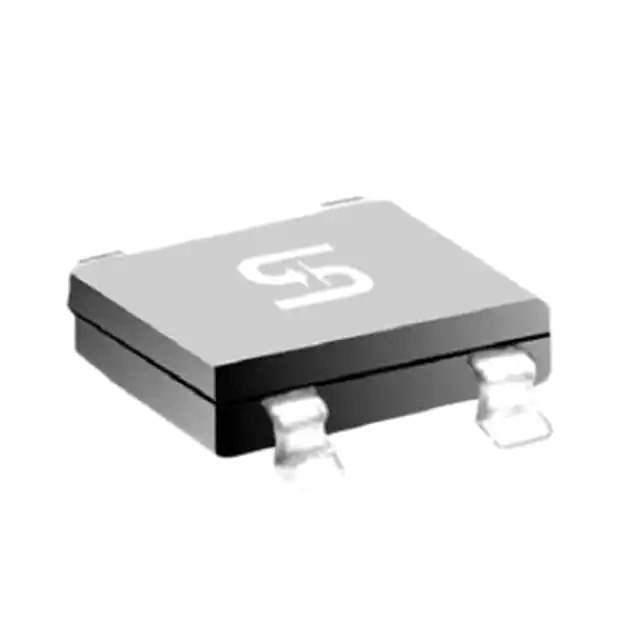

DBLS105G Real Image
Same model may have multiple batches, images only for reference.

DBLS105G

Part No DBLS105G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 1A DBLS / Bridge Rectifier Single Phase Standard 600 V Surface Mount DBLS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 2 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DBLS
Base Product Number DBLS105
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584143-DBLS105G
Ultra Librarian 3D Model Ultra Librarian DBLS105G CAD Model

Description

The 584143-DBLS105G is a single-phase bridge rectifier diode designed for use in electronic circuits.

  • Forward Voltage: 1.1 V @ 1 A
  • Reverse Voltage: 600 V
  • Reverse Leakage Current: 2 µA @ 600 V
  • Mounting Type: Surface mountable
  • Package: 4-SMD, Gull Wing
  • Operating Temperature: -55°C to 150°C
  • Series: DBLS
  • Manufacturer: Taiwan Semiconductor
  • Application: Power supply circuits, rectifier circuits, and other applications
