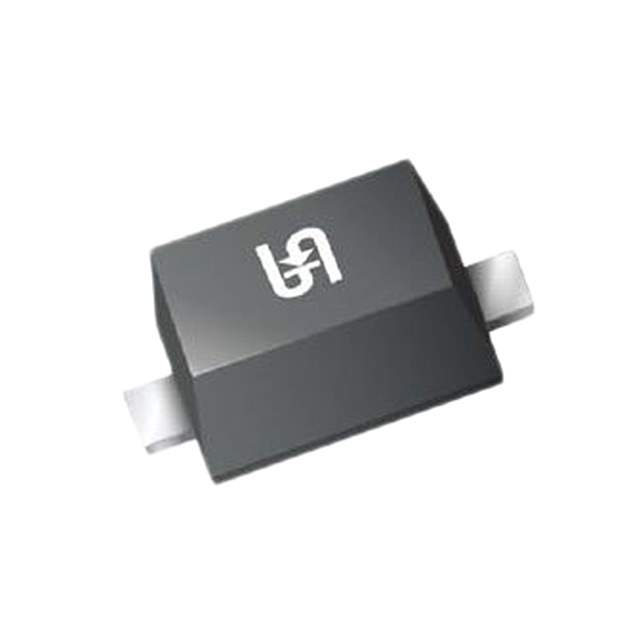

The BZT52B27S RR is a surface-mount Zener diode manufactured by Taiwan Semiconductor. It is designed to provide voltage regulation in a variety of electronic circuits. This diode is characterized by its small size, low leakage current, and sharp breakdown voltage.

Applications

• Voltage regulation
• Transient voltage suppression
• Overvoltage protection
• Clipping circuits
• Level shifting

Features

• Surface mount package
• Zener voltage: 27V
• Low leakage current
• High surge capability
• Excellent clamping capability

Benefits

• Provides stable voltage regulation
• Protects sensitive components from overvoltage conditions
• Easy to integrate into circuit boards due to its small size
• Reliable performance in demanding applications

Specifications

The BZT52B27S RR has a Zener voltage of 27V with a tolerance that is specified in the datasheet. The power dissipation is typically around 500mW. The operating temperature range is typically from -65°C to +150°C. The forward voltage is approximately 0.9V at 10mA. The device is RoHS compliant.
