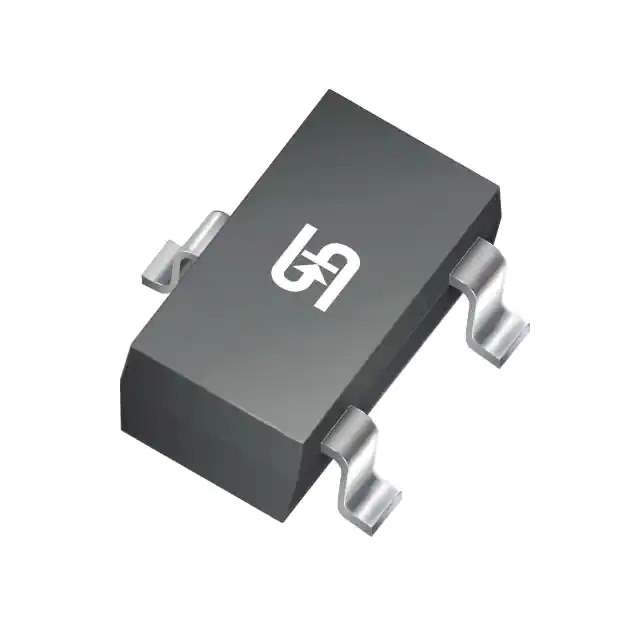

BAS20W Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 150 V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
Operating Temperature - Junction 125°C
Base Product Number BAS20
Standard Package 45,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568675-BAS20W
Ultra Librarian 3D Model Ultra Librarian BAS20W CAD Model

Description

The 568675-BAS20W is a small signal rectifier diode from Taiwan Semiconductor. It is designed for use in discrete semiconductor products and has a maximum reverse voltage of 150 V.

  • Average rectified current: 200 mA.
  • Forward voltage: 1.25 V @ 100 mA.
  • Reverse recovery time: 50 ns.
  • Reverse leakage current: 100 nA @ a voltage of 150 V.
  • Capacitance: 5pF @ 0V and 1MHz.
  • Mounting: surface mountable.
  • Package: SC-70, SOT-323 package.
  • Operating temperature range: up to 125°C.
  • Status: active.
  • REACH regulations: unaffected.
