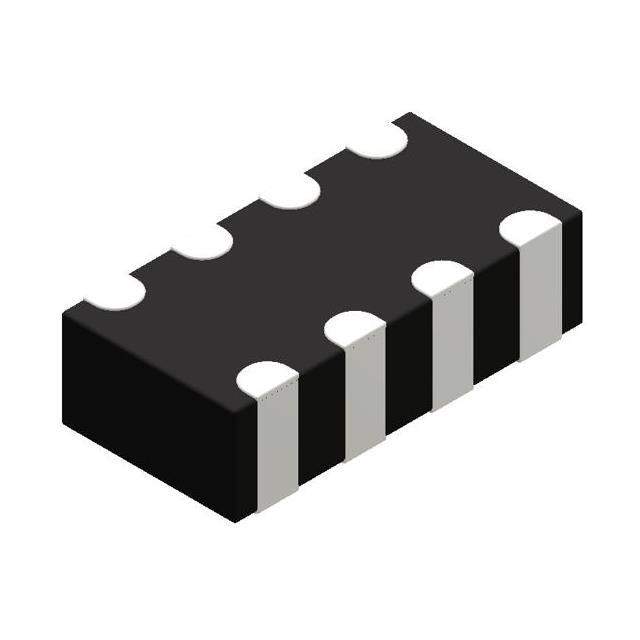

FCA 3216KF4-301T02 Real Image1 FCA 3216KF4-301T02 Real Image2
Same model may have multiple batches, images only for reference.
FCA 3216KF4-301T02 Real Image1 FCA 3216KF4-301T02 Real Image2
FCA 3216KF4-301T02 Real Image1 FCA 3216KF4-301T02 Real Image2
Same model may have multiple batches, images only for reference.

FCA 3216KF4-301T02

Part No FCA 3216KF4-301T02
Manufacturer TAI-TECH Advanced Electronics
Catalog Ferrite Beads and Chips
Description 300 OHMS @ 100 MHZ 4 POWER, SIGN / 300 Ohms @ 100 MHz 4 Ferrite Bead 1206 (3216 Metric) 250mA 400mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr TAI-TECH Advanced Electronics
Series FCA3216
Package Tape & Reel
Filter Type -
Number of Lines 4
Impedance @ Frequency 300 Ohms @ 100 MHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 400mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Height (Max) 0.051" (1.30mm)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Features -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Standard Package 3,000 pcs
Win Source Part Number 1382062-FCA 3216KF4-301T02
Ultra Librarian 3D Model Ultra Librarian FCA 3216KF4-301T02 CAD Model

Description

The FCA3216KF4-301T02 is a ferrite bead filter designed for use in electronic circuits.

  • Series: FCA3216
  • Package: 1206 (3216 Metric)
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.051" (1.30mm)
  • Maximum Current: 250mA
  • DC Resistance (DCR): 400mOhm
  • Mounting Type: Surface mount
  • Operating Temperature: -55°C to 125°C
  • Impedance: 300 Ohms @ 100 MHz
  • Manufacturer: TAI-TECH Advanced Electronics
