Same model may have multiple batches, images only for reference.

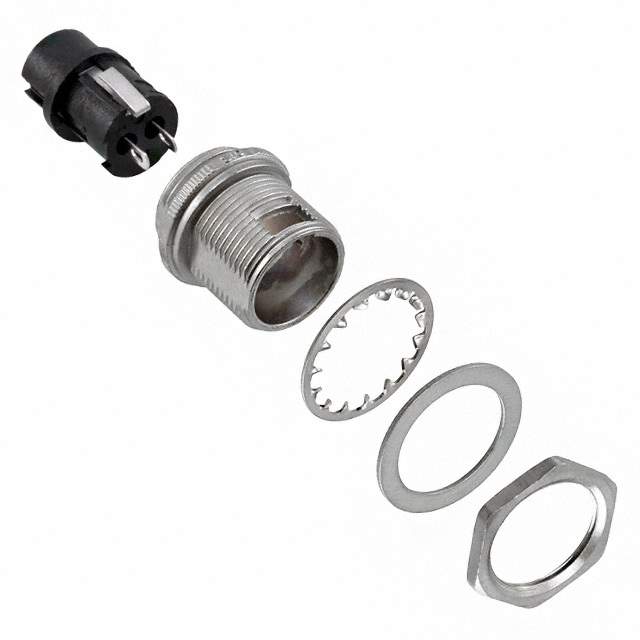

SL182FX Real Image
Same model may have multiple batches, images only for reference.

SL182FX

Part No SL182FX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series Slim-Line® SL18
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 2
Shell Size - Insert SL-2F
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder Eyelet(s)
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Zinc Die Cast
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 5A
Contact Material Copper Alloy
Insert Material Thermoplastic, Glass Filled
Applications Audio, Industrial, Marine, Medical
Base Product Number SL182F
Other Names SL182FX,SL182F,SC1870,SL182F
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294185-SL182FX
Ultra Librarian 3D Model Ultra Librarian SL182FX CAD Model

Description

The Slim-Line SL18 series connector is a receptacle type with female sockets and solder eyelet termination.

  • Fastening Type: Threaded
  • Shell Material: Zinc Die-Cast
  • Shell Finish: Nickel
  • Shielding: Unshielded
  • Flammability Rating: UL94 V-0
  • Shell Size: SL-2F
  • Mounting Feature: Bulkhead-Rear Side Nut
  • Applications: Industrial, Medical, Marine, and Audio
  • Contact Material: Copper Alloy
  • Current Rating: 5A
  • Voltage Rating: Not Specified
  • Ingress Protection Rating: Not Specified
  • Package: Bulk
  • Standard Package: 100 Connectors
  • Orientation: A
  • Mounting: Panel Mounted
  • Contact Finish: Silver
  • Contact Finish Thickness: Not Specified
  • Insert Material: Thermoplastic and Glass-Filled Material
