The AD8345AREZ is a high-performance, quadrature modulator designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This device is specifically tailored for modern RF and IF modulation needs, offering an exceptional balance of performance and integration for communication systems.

Key Features

• Frequency Range: The AD8345AREZ operates in the 0.8 GHz to 2.5 GHz frequency range, making it suitable for a wide array of applications including wireless communications.
• Integration: It integrates a voltage-controlled oscillator (VCO) and a high-linearity I/Q modulator, providing a compact solution that reduces the number of external components required.
• Output Power: The modulator is designed to deliver a high output power, ensuring strong signal transmission capabilities.
• Low Noise: The device exhibits low phase noise and excellent carrier suppression, which are critical for high-quality signal modulation.
• Power Consumption: With its low power consumption, the AD8345AREZ is ideal for battery-powered devices and other applications where power efficiency is a priority.

Applications

The AD8345AREZ is versatile and can be used in various applications, such as:

• Wireless infrastructure (GSM, WCDMA, LTE)
• Broadband wireless access systems (WiMAX, WiFi)
• Cable modem termination systems
• General-purpose RF and IF phase modulation

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality, and the AD8345AREZ is no exception. It is built to meet rigorous industry standards, ensuring reliability and performance in even the most demanding conditions.

Ordering Information

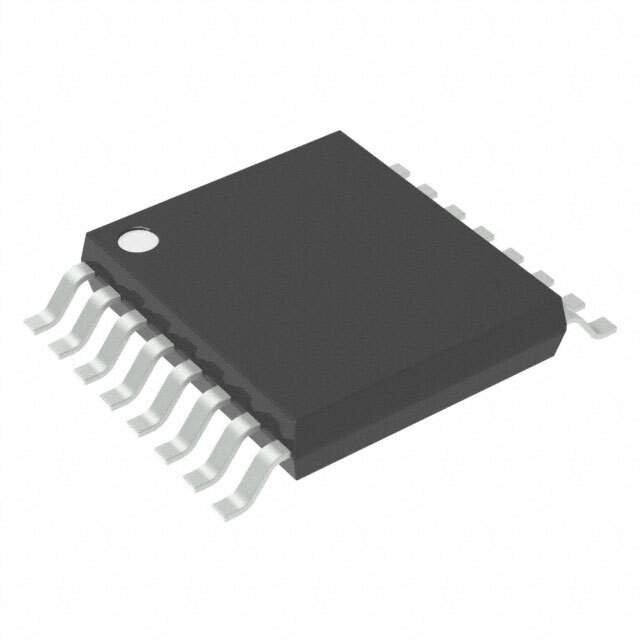

The AD8345AREZ is available in a compact, RoHS-compliant, 16-lead TSSOP package, ensuring ease of integration into a wide range of circuit designs. For ordering or to request samples, please visit the Analog Devices Inc. website or contact your local sales representative.
