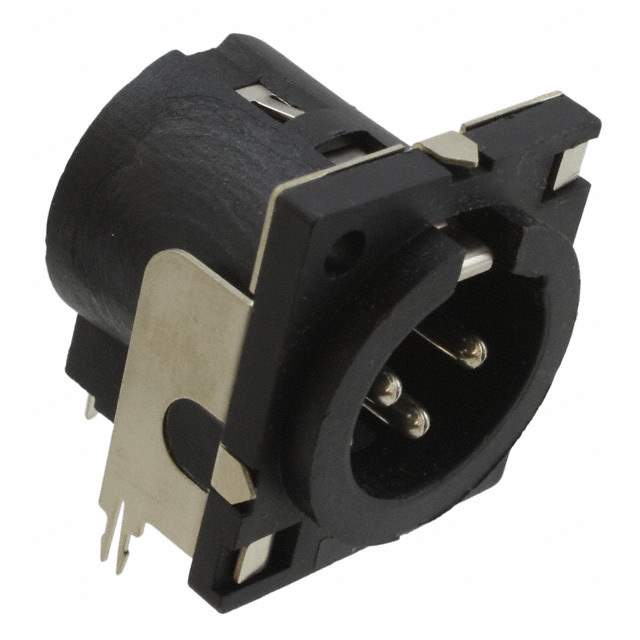

PQG3MRA112 Real Image
Same model may have multiple batches, images only for reference.

PQG3MRA112

Part No PQG3MRA112
Manufacturer Switchcraft Inc.
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE XLR 3P SOLDER / 3 Position Circular Connector Receptacle, Male Pins Solder
Datasheet
PQG3MRA112 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Switchcraft Inc.
Series Q-G® PQG
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 3
Shell Size - Insert XLR
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Flange
Termination Solder
Fastening Type Latch Lock
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic, Glass Filled
Contact Finish - Mating Electro-Tin
Color Black
Material Flammability Rating UL94 V-0
Features Board Guide, Board Lock, Ground
Temperature Range - Operating -34°C ~ 85°C
Contact Material Copper Alloy
Insert Material Thermoplastic, Glass Filled
Applications Audio
Base Product Number PQG3MR
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1345597-PQG3MRA112
Ultra Librarian 3D Model Ultra Librarian PQG3MRA112 CAD Model

Description

The Q-G® PQG series circular connector assembly is a male-pin receptacle with a black color and a keyed orientation.

  • Color: black
  • Orientation: keyed
  • Mounting Feature: flange
  • Shell Size: XLR
  • Connector Type: soldered
  • Fastening Type: latch lock
  • Manufacturer: Switchcraft Inc.
  • Contact Material: copper alloy
  • Ideal for: audio applications
  • Material Flammability Rating: UL94 V-0
  • Package: bulk
  • Package Quantity: 100
  • Mounting Types: panel mounting, through-hole, and right-angle
  • Temperature Range: between -34°C and 85°C
