Same model may have multiple batches, images only for reference.

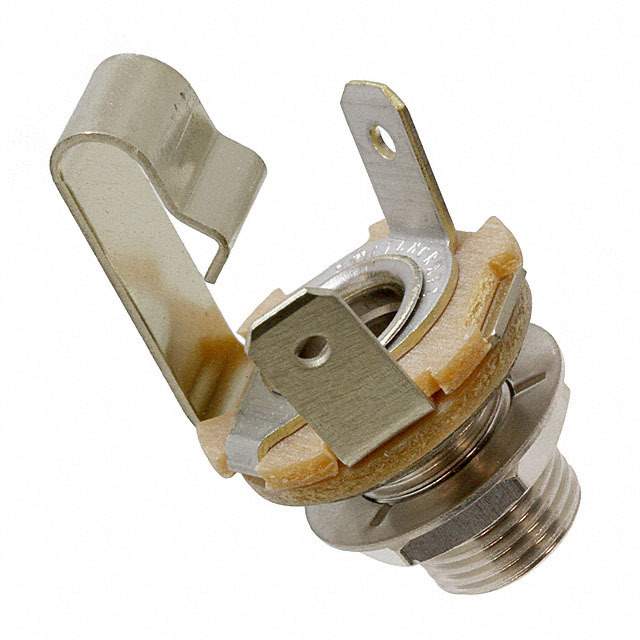

FAL11 Real Image
Same model may have multiple batches, images only for reference.

FAL11

Part No FAL11
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK MONO 6.35MM PNL MNT / Conn 1/4" Phone Jack F 2 POS Solder Lug ST Panel Mount 2 Terminal 1 Port
Datasheet
FAL11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Series LITTEL-JAX
Packaging Bulk
Connector Type Phone Jack
Gender Female
Signal Lines Mono
Industry Recognized Mating Diameter 6.35mm (0.250", 1/4") - Headphone
Actual Diameter 0.250" (6.35mm)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Panel Mount
Termination Solder Eyelet(s)
Shielding Unshielded
Features Mounting Hardware, Thread Lock
Voltage Rating DC 25VDC
Current Rating 1A
Contact Material - Plating Nickel
Body Material Copper Alloy
Body Color Silver
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material Copper Alloy
Panel Hole Size 0.375" (9.52mm)
Thread Size 3/8"-32
Operating Temperature Range -20°C ~ 65°C
Win Source Part Number 793944-FAL11
Popularity Medium
Supply and Demand Status Balance
Family Name FAL11
Introduction Date January 15, 1998
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FAL11 CAD Model

Description

The Switchcraft Inc. FAL11 is a female phone jack connector with a panel mount feature.

  • Mounting: Panel Mount
  • Termination: Solder Eyelet
  • Conductors: 2
  • Contacts: 2
  • Current Rating: 1A
  • Mating Diameter: 6.35mm (0.250", 1/4") - Headphone
  • Supply and Demand Status: Balanced
