Same model may have multiple batches, images only for reference.

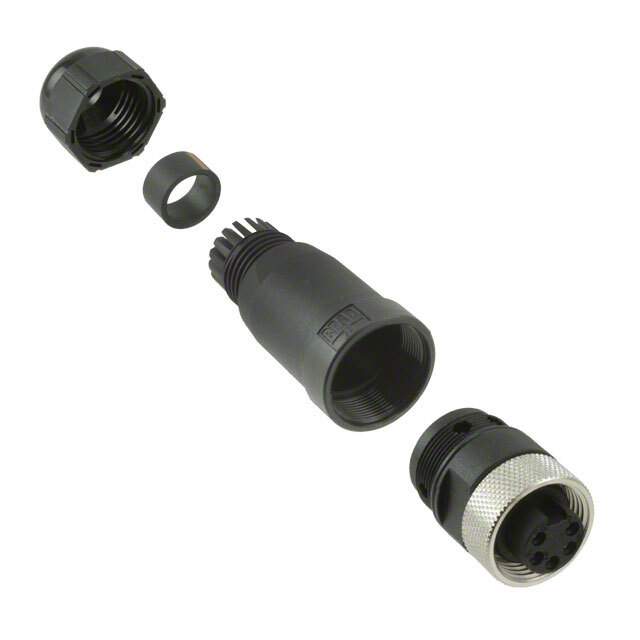

1300170023 Real Image
Same model may have multiple batches, images only for reference.

1300170023

Part No 1300170023
Manufacturer Molex, LLC
Catalog Circular Connectors
Description Conn Circular F 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Mini-ChangeR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Nylon, Polyamide
Connector Type Circular, Receptacle
Contact Gender Female
Contact Material Brass
Contact Plating Gold
Country of Origin US
Current Rating 8 A
Fastening Type Threaded
Gender Female
Housing Material Nylon
Max Operating Temperature 80 °C
Max Voltage Rating (DC) 600.6 kV
Min Operating Temperature -20 °C
Mount Cable, Free Hanging
Number of Circuits 5
Number of Contacts 5
Number of Cores 5
Number of Pins 5
Number of Ports 1
Number of Positions 5
Number of Terminals 5
Orientation Straight
Radiation Hardening No
Ratings Dust Tight, IP67, Waterproof
REACH SVHC Unknown
RoHS Compliant
Termination Crimp, Screw
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Win Source Part Number 1132080-1300170023
Categories Circular Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1300170023 CAD Model

Description

This Molex circular receptacle connector is a high-quality, five-position connector perfect for a variety of applications from Molex.

  • Positions: 5
  • Voltage Rating: 600 V
  • Current Rating: 8 A
  • Contact Material: Brass
  • Housing Material: Nylon
  • Waterproof: Yes
  • Dust-tight: Yes
  • IP Rating: IP67
  • Fastening Type: Threaded
