Part No D3F
Manufacturer Switchcraft Inc.
Catalog Circular Connectors - Assemblies

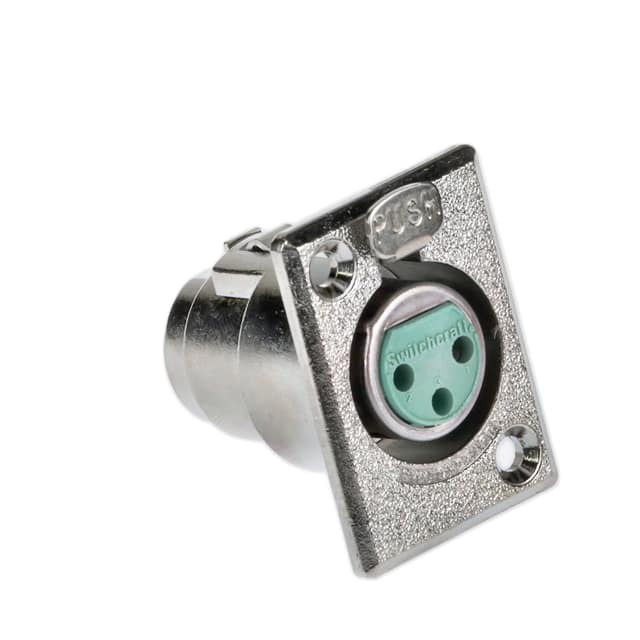

Description CONN PLUG FMALE XLR 3POS SOLDER / 3 Position Circular Connector Plug, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Switchcraft Inc.
Series Q-G® D
Package Bulk
Product Status Active
Connector Type Plug, Female Sockets
Number of Positions 3
Shell Size - Insert XLR
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Latch Lock
Orientation Keyed
Primary Material Metal
Shell Material Stainless Steel
Contact Finish - Mating Silver
Color Silver
Features Ground
Current Rating (Amps) 15A
Voltage Rating 125VAC
Contact Material Phosphor Bronze
Insert Material Polyester
Applications Audio, Instrumentation
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 868025-D3F
Ultra Librarian 3D Model Ultra Librarian D3F CAD Model

Description

The 868025-D3F is a circular connector assembly designed for audio and instrumentation applications. It features a plug with female sockets and a solder cup termination, ensuring secure and reliable connections. Switchcraft Inc.

  • Application: Audio and Instrumentation
  • Connector Type: Plug
  • Gender: Female
  • Termination Type: Solder Cup
  • Locking Type: Latch Lock
  • Voltage Rating: 125VAC
  • Contact Material: Phosphor Bronze
  • Shell Material: Stainless Steel
  • Mounting Type: Panel Mount
