Same model may have multiple batches, images only for reference.

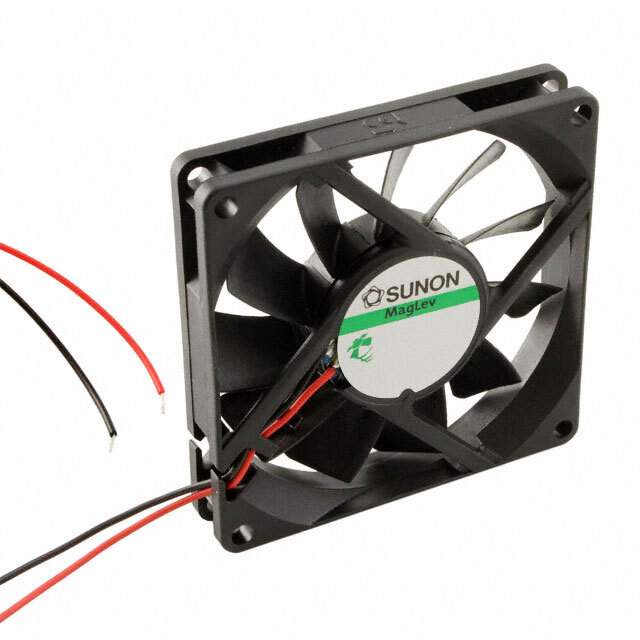

ME80151V1-000U-A99 Real Image
Same model may have multiple batches, images only for reference.

ME80151V1-000U-A99

Part No ME80151V1-000U-A99
Manufacturer Sunon Fans
Catalog DC Fans
Description FAN AXIAL 80X15MM 12VDC WIRE
Datasheet
ME80151V1-000U-A99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Sunon Fans
Status Active
Voltage Rating 12VDC
Width 15.00mm
Air Flow 37.0 CFM (1.04m3/min)
Static Pressure 0.140 in H2O (34.9 Pa)
Bearing Type Vapo-Bearing
Fan Type Tubeaxial
Features Auto Restart
Noise 34.7 dB(A)
Power (Watts) 1.96W
RPM 3000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 to 158°F (-10 to 70°C)
Approvals CE, CUR, TUV, UL
Weight 0.15 lb (68.04g)
Current Rating 0.163A
Voltage Range 4.5 to 13.8VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 60000 Hrs @ 40°C
Win Source Part Number 1075761-ME80151V1-000U-A99
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ME80151V1-000U-A99 CAD Model

Description

The Sunon Fans ME80151V1-000U-A99 is a 12VDC tubeaxial fan from Sunon Fans.

  • Voltage: 12VDC
  • Weight: 0.15 lb (68.04g)
  • Width: 15.00mm
  • Air Flow: 37.0 CFM (1.04m3/min)
  • Static Pressure: 0.140 in H2O (34.9 Pa)
  • Noise Level: 34.7 dB(A)
  • RPM: 3000 RPM
  • Bearing Type: vapo-bearing
  • Lifetime: 60000 Hrs @ 40°C
  • Approvals: CE, CUR, TUV, and UL
  • Ideal for: fans and thermal management applications
