Same model may have multiple batches, images only for reference.

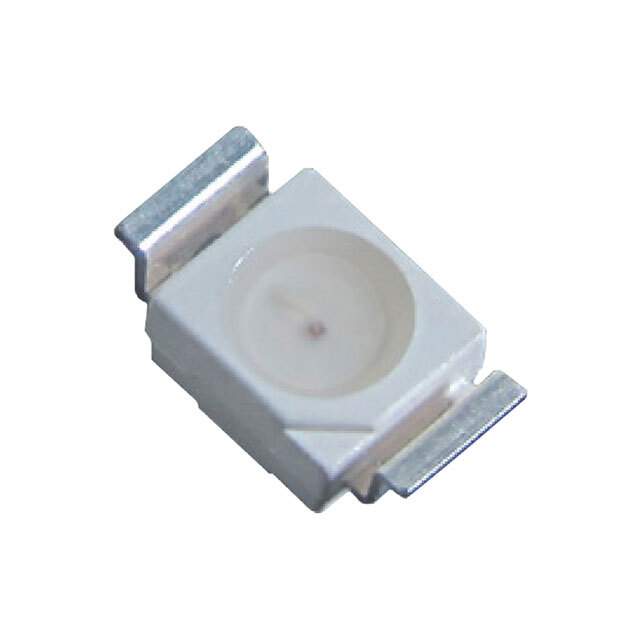

XZVG45WT-9 Real Image
Same model may have multiple batches, images only for reference.

XZVG45WT-9

Part No XZVG45WT-9
Manufacturer SunLED
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 2PLCC SMD / Green 570nm LED Indication - Discrete 2.1V 2-SMD, Z-Bend, Bottom Entry
Datasheet
XZVG45WT-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr SunLED
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 98mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 570nm
Wavelength - Peak 574nm
Package / Case 2-SMD, Z-Bend, Bottom Entry
Supplier Device Package 2-PLCC
Size / Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number XZVG45
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1349542-XZVG45WT-9
Ultra Librarian 3D Model Ultra Librarian XZVG45WT-9 CAD Model

Description

The 1349542-XZVG45WT-9 is a green LED indication device from SunLED.

  • Package Size: 3.20mm L x 2.80mm W
  • Viewing Angle: 120°
  • Millicandela Rating: 98mcd
  • Wavelength-Dominant: 570nm
  • Mounting Type: surface mount, bottom entry
  • Package/Case: 2-SMD, Z-Bend, Bottom Entry
  • Voltage-Forward (Vf): 2.1V
  • Operating Temperature Range: -40°C to 85°C
