Same model may have multiple batches, images only for reference.

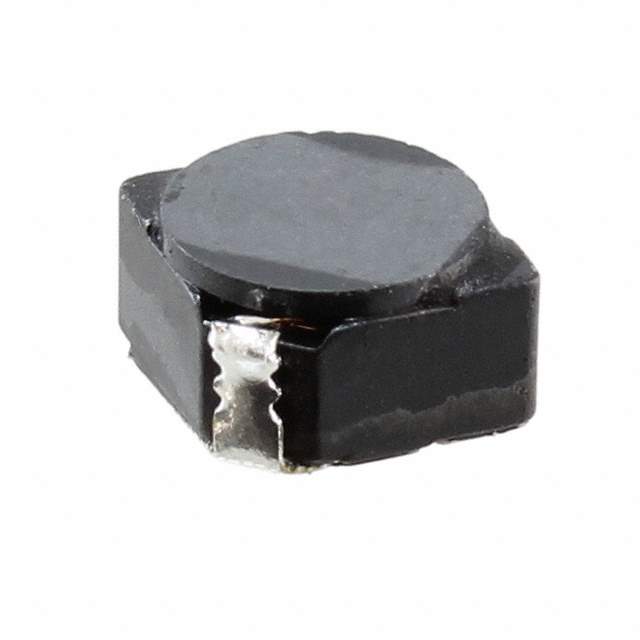

CDRH4D28NP-220NC Real Image
Same model may have multiple batches, images only for reference.

CDRH4D28NP-220NC

Part No CDRH4D28NP-220NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 700MA 235MOHM SMD / 22 µH Shielded Inductor 700 mA 235mOhm Max Nonstandard
Datasheet
CDRH4D28NP-220NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 22 µH
Tolerance ±30%
Current Rating (Amps) 700 mA
Shielding Shielded
DC Resistance (DCR) 235mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.185" L x 0.185" W (4.70mm x 4.70mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number Q5359987,308-2304-1,308-2304-2,308-2304-6,CDRH4D28NP-220NCTR-NDL,CDRH4D28NP-220NCTR-ND,CDRH4D28NP-220NCTR
Standard Package 2,000
Win Source Part Number 1327494-CDRH4D28NP-220NC
Ultra Librarian 3D Model Ultra Librarian CDRH4D28NP-220NC CAD Model

Description

The Sumida America Components Inc. CDRH4D28NP-220NC is a shielded fixed inductor with a 22µH inductance.

  • Inductance: 22µH
  • DC Resistance: 235mOhm maximum
  • Current Rating: up to 700mA
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Mounting: Surface Mount
  • Case/Package: Nonstandard
  • RoHS3 Compliant: Yes
  • Temperature Range: -40°C to 100°C
  • Packaging: Reel - TR
  • Height: 0.118" (3.00mm)
