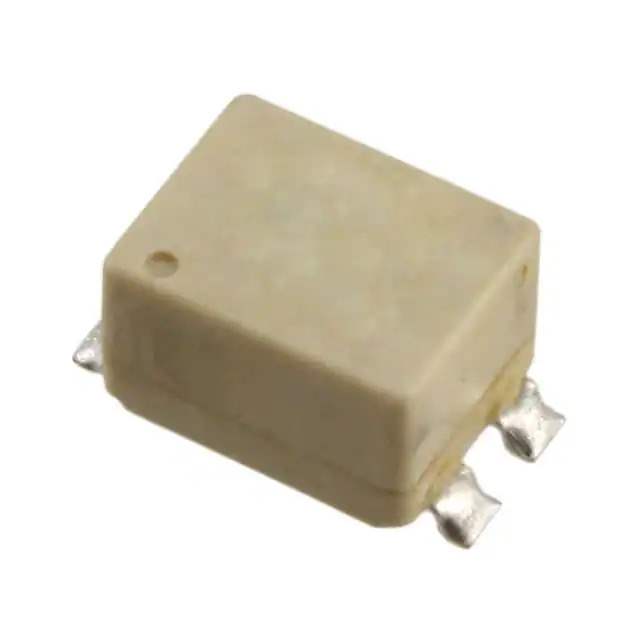

CPFC74NP-PS10H2A15 Real Image
Same model may have multiple batches, images only for reference.

CPFC74NP-PS10H2A15

Part No CPFC74NP-PS10H2A15
Manufacturer Sumida America Components Inc.
Catalog Common Mode Chokes
Description CMC 1.5A 2LN 700 OHM SMD
Datasheet
CPFC74NP-PS10H2A15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Sumida America Components Inc.
Series CPFC
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohms @ 100 MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 120mOhm (Typ)
Mounting Type Surface Mount
Size / Dimension 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) 0.200" (5.08mm)
Package / Case Vertical, 4 Gull Wing
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 849624-CPFC74NP-PS10H2A15
Ultra Librarian 3D Model Ultra Librarian CPFC74NP-PS10H2A15 CAD Model

Description

The CPFC74NP-PS10H2A15 is a common mode choke from the CPFC series of filters by Sumida America Components Inc.

  • Filter Series: CPFC
  • Voltage Rating: AC and DC
  • Maximum Current Rating: 1.5A
  • Size: 0.374" L x 0.224" W (9.50mm x 5.70mm)
  • Height: 0.200" (5.08mm)
  • Lines: 2
  • Impedance @ 100 MHz: 700 Ohms
  • DC Resistance (Typ): 120mOhm
  • Mounting: Surface Mount, 4 Gull Wing
  • Status: Active
