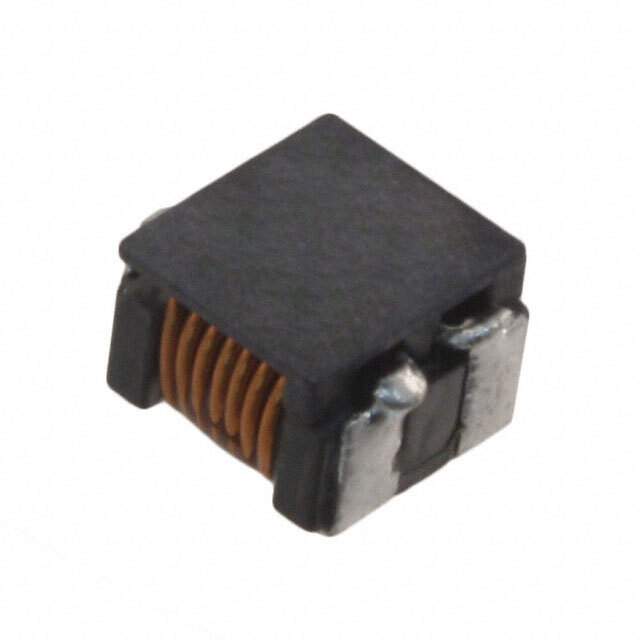

CPFC6D36NP-100M06 Real Image
Same model may have multiple batches, images only for reference.

CPFC6D36NP-100M06

Part No CPFC6D36NP-100M06
Manufacturer Sumida America Components Inc.
Catalog Common Mode Chokes
Description CMC 2.5A 2LN 600 OHM SMD / DC Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Sumida America Components Inc.
Packaging Reel
Filter Type Power Line
Number of Lines 2
Impedance at Frequency 600 Ohms at 100MHz
Current Rating (Maximum) 2.5A
DC Resistance (DCR) (Maximum) 20mOhm
Temperature Range - Operating -20°C ~ 100°C
Mounting Style SMD
Dimension 0.244" L x 0.209" W (6.20mm x 5.30mm)
Height (Maximum) 0.150" (3.80mm)
Manufacturer Package Horizontal, 4 J-Lead
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801811-CPFC6D36NP-100M06
Ultra Librarian 3D Model Ultra Librarian CPFC6D36NP-100M06 CAD Model

Description

The Sumida America Components Inc. CPFC6D36NP-100M06 is a power line filter.

  • Filter Type: Power Line
  • Number of Lines: 2
  • Dimension: 0.244" L x 0.209" W (6.20mm x 5.30mm)
  • Manufacturer Package: Horizontal, 4 J-Lead
  • Height (Maximum): 0.150" (3.80mm)
  • Current Rating (Maximum): 2.5A
  • DC Resistance (DCR) (Maximum): 20mOhm
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Impedance @ Frequency: 600 Ohms @ 100MHz
