Same model may have multiple batches, images only for reference.

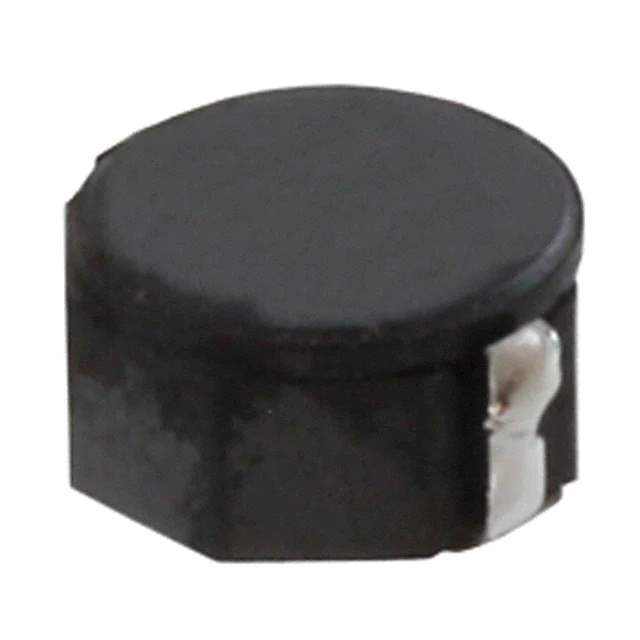

CDRH8D43NP-680NC Real Image
Same model may have multiple batches, images only for reference.

CDRH8D43NP-680NC

Part No CDRH8D43NP-680NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 68UH 1A 240 MOHM SMD / 68 μH Shielded Inductor 1 A 240mOhm Max Nonstandard
Datasheet
CDRH8D43NP-680NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH8D43
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 68 µH
Tolerance ±30%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.5A
Shielding Shielded
DC Resistance (DCR) 240mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 866278-CDRH8D43NP-680NC
Ultra Librarian 3D Model Ultra Librarian CDRH8D43NP-680NC CAD Model

Description

The CDRH8D43NP-680NC is a fixed inductor from Sumida America Components Inc.

  • Series: CDRH8D43
  • Mounting Type: Surface Mount
  • Shielded: Yes
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Height: 0.177" (4.50mm)
  • Inductance: 68 μH
  • Tolerance: ±30%
  • DC Resistance (DCR): 240mOhm maximum
  • Operating Temperature: -40°C to 100°C
  • Current Rating: 1A
  • Package: Nonstandard tape & reel
  • Core Material: Ferrite
  • ECCN: EAR99
