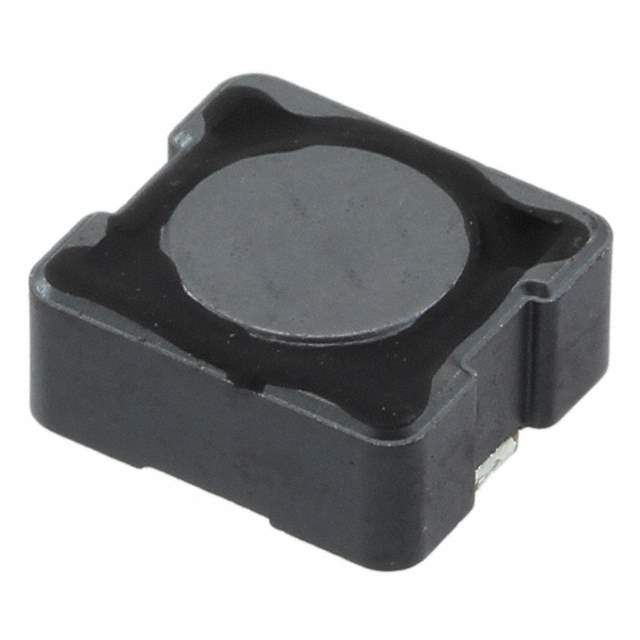

CDRH104RNP-101NC Real Image
Same model may have multiple batches, images only for reference.

CDRH104RNP-101NC

Part No CDRH104RNP-101NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description POWER INDUCTORS (SMD Type)
Datasheet
CDRH104RNP-101NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH104R
Packaging Reel - TR
Inductance 100μH
Tolerance ±30%
Current Rating 1.25A
Current - Saturation 1.35A
Shielding Shielded
DC Resistance (DCR) 304 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Win Source Part Number 1160808-CDRH104RNP-101NC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH104R
Introduction Date July 29, 2002
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH104RNP-101NC CAD Model

Description

The Sumida America Components Inc. CDRH104RNP-101NC is a shielded inductor in a non-standard package.

  • Current Rating: 1.25A
  • Inductance: 100μH
  • Tolerance: ±30%
  • Operating Temperature Range: -40°C to 100°C
  • DC Resistance (DCR): 304 mOhm Max
  • Suitable for: Inductors, coils, chokes applications
  • Package Dimension: 0.402" L x 0.394" W (10.20mm x 10.00mm)
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2024
