Same model may have multiple batches, images only for reference.

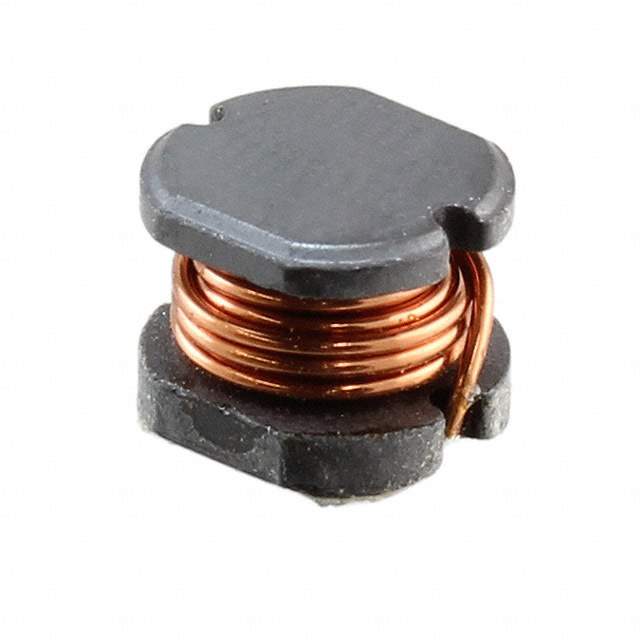

CD54NP-181KC Real Image
Same model may have multiple batches, images only for reference.

CD54NP-181KC

Part No CD54NP-181KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 180UH 380MA 1.38OHM SM / 180 µH Unshielded Inductor 380 mA 1.38Ohm Max Nonstandard
Datasheet
CD54NP-181KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CD54
Package Tape & Reel (TR)
Material - Core Ferrite
Inductance 180 µH
Tolerance ±10%
Current Rating (Amps) 380 mA
Shielding Unshielded
DC Resistance (DCR) 1.38Ohm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.191" (4.85mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 1,500
Win Source Part Number 1122531-CD54NP-181KC
Ultra Librarian 3D Model Ultra Librarian CD54NP-181KC CAD Model

Description

The Sumida America Components Inc. CD54NP-181KC is a fixed inductor that belongs to the CD54 series.

  • Series: CD54
  • Shielding: Unshielded
  • Standard Package: 1,500
  • Tolerance: ±10%
  • Inductance: 180 μH
  • DC Resistance: 1.38Ohm max
  • Mounting Type: SMD (SMT)
  • Operating Temperature: -40°C to 100°C
