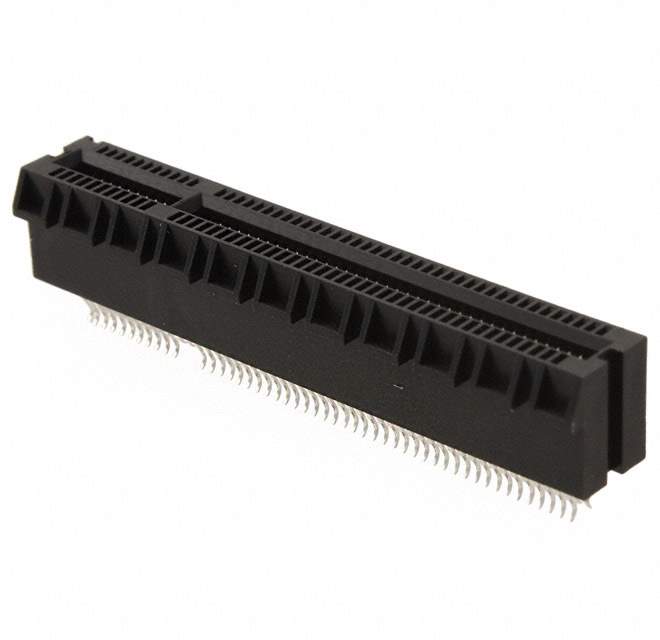

NWE49DHRN-T941 Real Image
Same model may have multiple batches, images only for reference.

NWE49DHRN-T941

Part No NWE49DHRN-T941
Manufacturer Sullins Connector Solutions
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FEMALE 98POS 0.039 / 98 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Datasheet
NWE49DHRN-T941 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Sullins Connector Solutions
Package Tray
Product Status Obsolete
Card Type PCI Express™
Gender Female
Number of Positions/Bay/Row 38; 11
Number of Positions 98
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Card Extender, Locking Ramp
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness Flash
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 105°C
Material - Insulation Polyamide (PA46), Nylon 4/6
Base Product Number NWE49
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names S2801,NWE49DHRNT941
Standard Package 1
Win Source Part Number 1211853-NWE49DHRN-T941
Ultra Librarian 3D Model Ultra Librarian NWE49DHRN-T941 CAD Model

Description

The NWE49DHRN-T941 is a card edge connector that belongs to the category of connectors and interconnects.

  • Category: Connectors and Interconnects
  • Connector Type: Female
  • Number of Positions: 98
  • Pitch: 0.039 inches
  • Color: Black
  • Features: Card Extender and Locking Ramp
  • Contact Type: Cantilever
  • Number of Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Finish Thickness: Flash
  • Insulation Material: Polyamide (PA46), Nylon 4/6
  • Temperature Range: -55°C to 105°C
