Introducing the VND5E006ASP-E from STMicroelectronics

The VND5E006ASP-E is a cutting-edge automotive-grade double channel high-side driver manufactured by STMicroelectronics, a leader in semiconductor solutions. Designed to drive automotive applications, this device is a part of the VIPower M0-7 series that provides an intelligent solution for driving resistive or inductive loads with one side connected to ground.

With an operational voltage range from 5.5V to 36V, the VND5E006ASP-E is equipped to handle the demanding electrical environments found in automotive applications. This robust device can withstand voltage transients up to 40V, ensuring reliable performance under a variety of conditions. Its Active VCC clamp prevents the device from damage caused by an overvoltage condition, making it an exceptionally safe choice for critical automotive systems.

The VND5E006ASP-E features a very low standby current consumption, which is crucial for energy-saving strategies in modern vehicles. This efficiency is further enhanced by its built-in thermal shutdown, which protects the device and the load in the event of overheating.

One of the key benefits of the VND5E006ASP-E is its built-in open-load detection in both on and off states, which provides immediate feedback on the status of the load, ensuring prompt maintenance and service actions. This feature is complemented by the device's ability to manage load current limitation, off-state open-load detection, and overtemperature protection with programmable thermal shutdown.

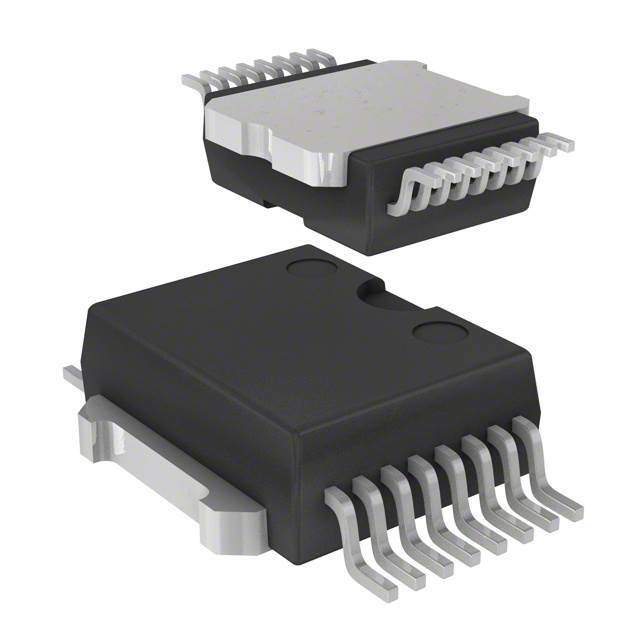

The device also features non-dissipative overcurrent protection and status feedback for each channel. The VND5E006ASP-E is encapsulated in a PowerSSO-36 package, which is designed for optimal thermal performance and space-saving on the PCB.

STMicroelectronics has ensured that the VND5E006ASP-E meets the stringent requirements of the automotive industry. It is fully compliant with the ISO 26262 standard, making it suitable for automotive safety-related systems. Whether it's for body control modules, resistive and inductive loads, or lights, the VND5E006ASP-E is a reliable and efficient solution for the modern automobile.

Overall, the VND5E006ASP-E stands out as a feature-rich, safe, and efficient choice for automotive high-side load driving applications, reflecting STMicroelectronics' commitment to innovation and quality in the automotive sector.
