STMicroelectronics UPSD3233BV-24T6 Microcontroller

The UPSD3233BV-24T6 is a sophisticated microcontroller unit (MCU) manufactured by STMicroelectronics, tailored for high-performance applications that require a flexible, reliable, and efficient processing unit. This MCU is part of the µPSD3200 Turbo Plus Series, which is known for its integration of a 8032 microcontroller core with a programmable logic, high-speed USB interface, and dual data pointers (DDP).

Key Features

• Core: The device features an 8-bit 8032 microcontroller core that operates at a frequency of 24MHz, providing robust processing capabilities for embedded applications.
• Memory: It comes with a large 323KB of flash memory, which is ideal for storing application code and data, and 8KB of SRAM for efficient data handling.
• USB Connectivity: Equipped with a USB 2.0 interface, the UPSD3233BV-24T6 ensures high-speed data transfer rates and connectivity with other devices.
• Programmable Logic: The MCU includes programmable logic cells (PLCs) that allow for customizable digital logic designs, providing flexibility in hardware configuration.
• Dual Data Pointers: The dual data pointers enhance the data movement capabilities within the MCU, significantly improving the efficiency of code execution.

Applications

The UPSD3233BV-24T6 is well-suited for a wide range of applications, including but not limited to:

• Industrial control systems
• Smart home devices
• Office automation
• Consumer electronics
• Medical devices

Package and Quality

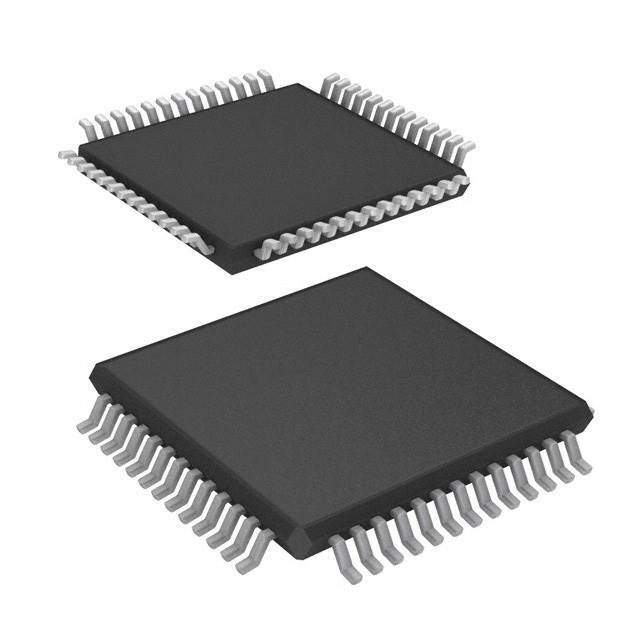

This MCU comes in a TQFP-52 package, which is compact and offers good thermal performance. STMicroelectronics ensures high-quality standards, making the UPSD3233BV-24T6 a reliable choice for mission-critical applications where performance and uptime are paramount.

The UPSD3233BV-24T6 by STMicroelectronics represents a robust and versatile solution for designers looking to leverage high-speed processing, extensive memory, and programmable logic features in their next embedded system project.
