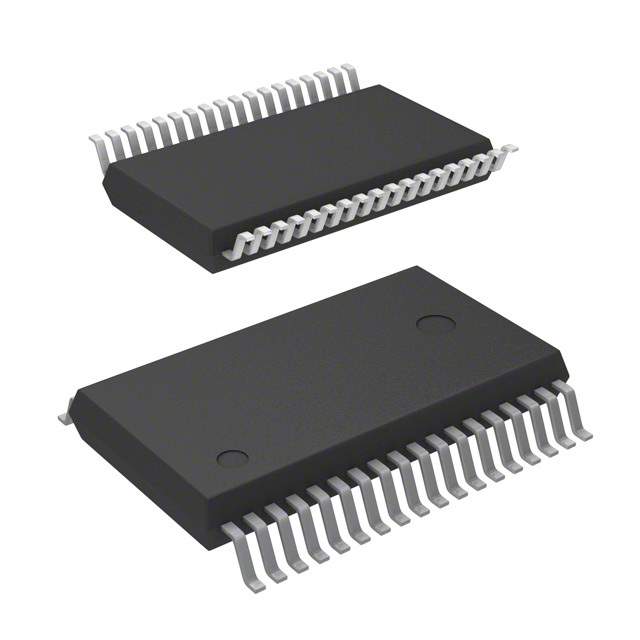

The M37547G4FP is a single-chip 8-bit CMOS microcomputer manufactured by Renesas Electronics America. It is part of the 740 family of microcontrollers and is designed for use in a wide range of consumer and industrial applications requiring moderate processing power and memory.

Applications

• Consumer electronics (e.g., remote controls, toys)
• Home appliances (e.g., washing machines, refrigerators)
• Industrial control systems
• Office automation equipment (e.g., printers, copiers)
• Automotive electronics (e.g., dashboard controls)

Features

• 8-bit CMOS CPU
• On-chip ROM (Read-Only Memory)
• On-chip RAM (Random-Access Memory)
• Multiple input/output (I/O) ports
• Timer/counter functions
• Serial communication interface (SCI)
• Analog-to-digital converter (ADC)
• Interrupt controller
• Low power consumption

Benefits

• Cost-effective solution for embedded control applications
• Simplified system design due to integrated peripherals
• Flexible I/O capabilities for interfacing with external devices
• Low power consumption for battery-powered applications
• Reduced development time and effort

Additional Details

The M37547G4FP features a built-in ROM for storing the program code and RAM for storing data. The I/O ports allow the microcontroller to interact with external sensors, actuators, and other devices. The timer/counter functions can be used for timing events, generating PWM signals, and measuring frequencies. The SCI provides a serial communication interface for communicating with other devices or a host computer.

The ADC allows the microcontroller to measure analog signals from sensors such as temperature, pressure, and light sensors. The interrupt controller allows the microcontroller to respond quickly to external events. The low power consumption makes it suitable for battery-powered applications. Overall, the M37547G4FP is a versatile and cost-effective microcontroller for a wide range of embedded control applications.
