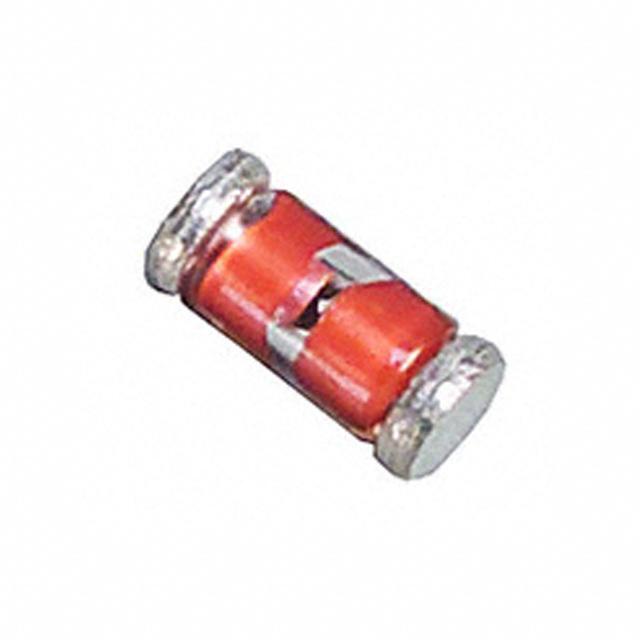

TMMBAT43FILM

Part No TMMBAT43FILM
Manufacturer STMicroelectronics
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Small Signal Schottky 30V 0.2A 5ns 2-Pin Mini-MELF T/R / DIODE SCHOTTKY 30V 200MA MINMELF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 200mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 500nA @ 25V
Capacitance @ Vr, F 7pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package Mini MELF
Operating Temperature - Junction -65°C to 125°C
Win Source Part Number 101357-TMMBAT43FILM
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TMMBAT43
Introduction Date August 19, 1999
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TMMBAT43FILM CAD Model

Description

STMicroelectronics TMMBAT43FILM Schottky Diode

The TMMBAT43FILM from STMicroelectronics is a high-performance Schottky diode, designed to meet the needs of a wide range of applications. Known for its low forward voltage drop and fast switching capabilities, this diode is an ideal choice for high-efficiency power management systems and signal switching applications.

Constructed with the cutting-edge semiconductor technology for which STMicroelectronics is renowned, the TMMBAT43FILM offers superior reliability and performance. The device's small form factor, housed in a DO-35 package, makes it suitable for compact circuit designs where space is at a premium.

Key Features:

  • Low Forward Voltage Drop: The TMMBAT43FILM exhibits a low forward voltage drop, which enhances the overall efficiency of the application it's used in by minimizing power loss during conduction.
  • Fast Switching Speed: Its fast switching capability ensures that the diode can handle high-frequency operations with ease, making it suitable for high-speed switching applications.
  • High Reliability: With STMicroelectronics' commitment to quality, this Schottky diode offers excellent reliability, ensuring long-term performance in a variety of conditions.
  • Low Capacitance: The device has a low capacitance, which is beneficial for high-frequency applications as it reduces the time delay and improves the efficiency of signal processing.
  • DO-35 Package: The compact DO-35 package allows for easy integration into various electronic assemblies, including surface-mount technology (SMT) on printed circuit boards (PCBs).

Applications:

The versatility of the TMMBAT43FILM makes it a suitable component for a multitude of applications, including:

  • Power supply management
  • DC-DC converters
  • Reverse polarity protection
  • Low-voltage rectification
  • High-frequency inverters
  • Signal demodulation
  • Automotive applications
  • Portable devices and battery-powered circuits

Overall, the TMMBAT43FILM Schottky diode from STMicroelectronics represents a blend of efficiency, speed, and compactness, making it an excellent choice for designers seeking to optimize their power management and signal processing systems.
