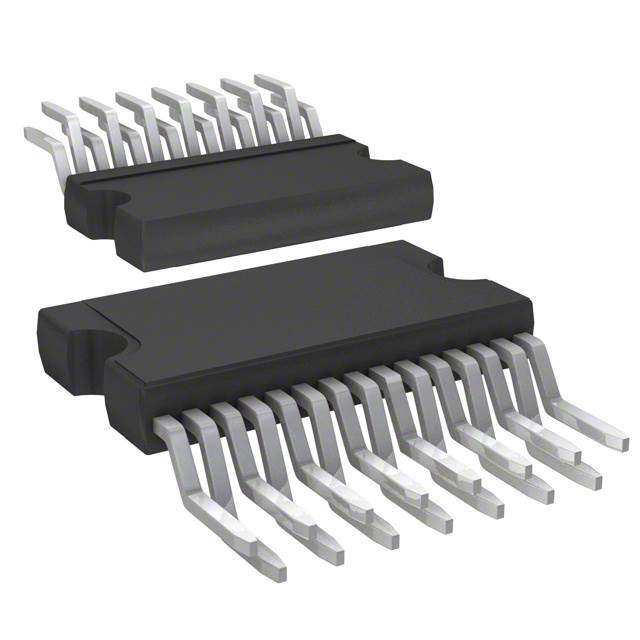

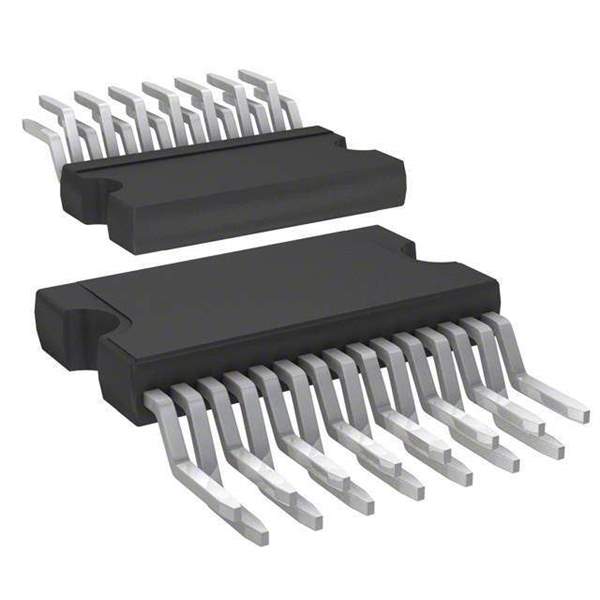

The TDA7297SA is a powerful and versatile dual bridge amplifier designed and manufactured by STMicroelectronics. This integrated circuit is particularly renowned for its high-quality audio performance and efficiency, making it an excellent choice for a wide range of consumer electronics applications.

Key Features

• Amplifier Type: The TDA7297SA is a class AB amplifier, providing a good balance between efficiency and linearity, which results in reduced distortion and high-quality audio output.
• Output Power: This dual bridge amplifier is capable of delivering up to 15 watts per channel into a 4-ohm load, making it suitable for driving medium-sized speakers in stereo audio systems.
• Supply Voltage: It operates over a wide supply voltage range from 6V to 18V, allowing for flexible usage in various power environments.
• Standby and Mute Functions: The TDA7297SA comes with integrated standby and mute functions, which enable power-saving modes and prevent noise during power cycling or when the amplifier is not in use.
• Minimal External Components: Designed for ease of use, the TDA7297SA requires very few external components, simplifying the design and reducing the overall system cost.

Applications

The TDA7297SA is ideal for a variety of audio applications, including:

• Home audio systems
• Television sets
• Portable speakers
• Active monitors
• DIY audio projects

Advantages

The TDA7297SA stands out for its robust design and thermal performance. With built-in overtemperature protection, it ensures reliable operation under different conditions. The Multiwatt15 package also aids in effective heat dissipation, enhancing the longevity and durability of the amplifier.

Conclusion

In summary, the TDA7297SA from STMicroelectronics is a high-performance audio amplifier that offers an excellent combination of power, efficiency, and ease of integration. Its ability to drive a wide range of speakers, along with its user-friendly features, makes it a popular choice among audio enthusiasts and professionals alike.
